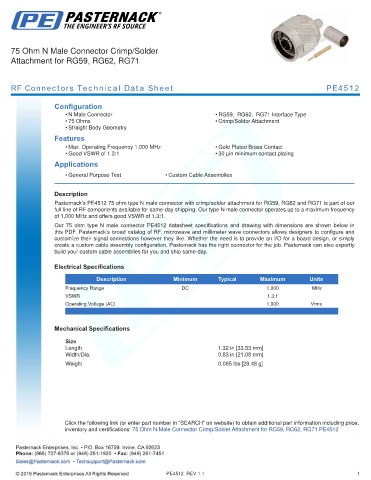

75 Ohm N Male Connector Crimp/Solder
Attachment for RG59, RG62, RG71

RF Connectors Technical Data Sheet PE4512

Configuration
• N Male Connector • RG59, RG62, RG71 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4512 75 ohm type N male connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum frequency
of 1,000 MHz and offers good VSWR of 1.3:1.
Our 75 ohm type N male connector PE4512 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.32 in [33.53 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Weight 0.065 lbs [29.48 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG59, RG62, RG71 PE4512

PE4512 REV 1.1 1
