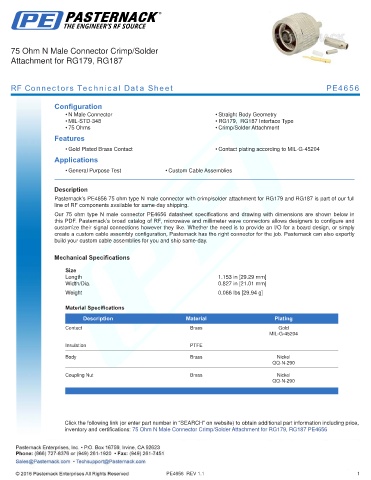

75 Ohm N Male Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4656

Configuration
• N Male Connector • Straight Body Geometry
• MIL-STD-348 • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Gold Plated Brass Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4656 75 ohm type N male connector with crimp/solder attachment for RG179 and RG187 is part of our full
line of RF components available for same-day shipping.
Our 75 ohm type N male connector PE4656 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.153 in [29.29 mm]
Width/Dia. 0.827 in [21.01 mm]
.
Weight 0.066 lbs [29.94 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
MIL-G-45204
Insulation PTFE

Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Solder Attachment for RG179, RG187 PE4656

PE4656 REV 1.1 1
