75 Ohm N Male Connector Clamp/Solder Attachment for RG6

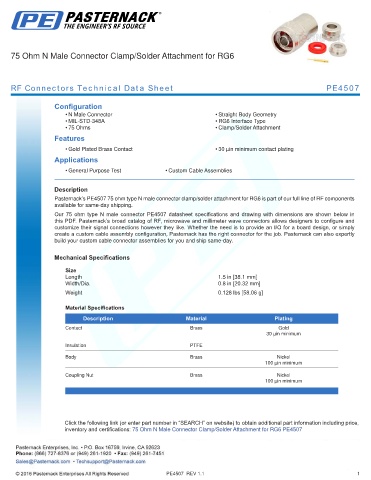

RF Connectors Technical Data Sheet PE4507

Configuration
• N Male Connector • Straight Body Geometry
• MIL-STD-348A • RG6 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4507 75 ohm type N male connector clamp/solder attachment for RG6 is part of our full line of RF components
available for same-day shipping.
Our 75 ohm type N male connector PE4507 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.128 lbs [58.06 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE

Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Clamp/Solder Attachment for RG6 PE4507

PE4507 REV 1.1 1
