75 Ohm N Male Connector Clamp/Solder
Attachment for RG11, RG144, RG216

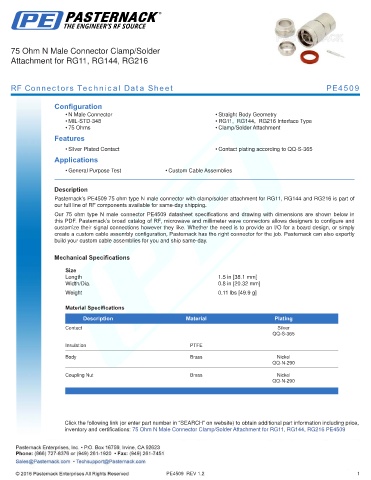

RF Connectors Technical Data Sheet PE4509

Configuration
• N Male Connector • Straight Body Geometry
• MIL-STD-348 • RG11, RG144, RG216 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4509 75 ohm type N male connector with clamp/solder attachment for RG11, RG144 and RG216 is part of
our full line of RF components available for same-day shipping.
Our 75 ohm type N male connector PE4509 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.11 lbs [49.9 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Clamp/Solder Attachment for RG11, RG144, RG216 PE4509

PE4509 REV 1.2 1
