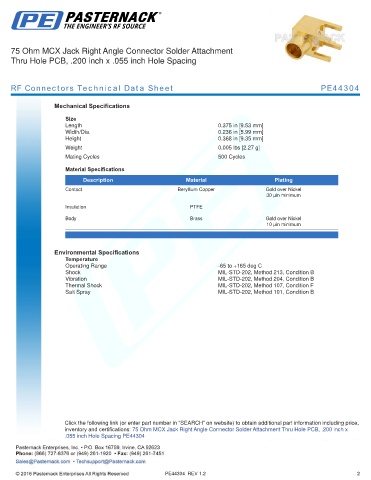

75 Ohm MCX Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .055 inch Hole Spacing

RF Connectors Technical Data Sheet PE44304

Mechanical Specifications

Size
Length 0.375 in [9.53 mm]
Width/Dia. 0.236 in [5.99 mm]
Height 0.368 in [9.35 mm]
.
Weight 0.005 lbs [2.27 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition F
Salt Spray MIL-STD-202, Method 101, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.055 inch Hole Spacing PE44304

PE44304 REV 1.2 2
