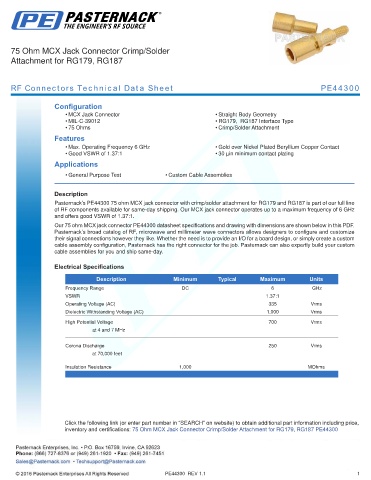

75 Ohm MCX Jack Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE44300

Configuration
• MCX Jack Connector • Straight Body Geometry
• MIL-C-39012 • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold over Nickel Plated Beryllium Copper Contact
• Good VSWR of 1.37:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44300 75 ohm MCX jack connector with crimp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping. Our MCX jack connector operates up to a maximum frequency of 6 GHz
and offers good VSWR of 1.37:1.
Our 75 ohm MCX jack connector PE44300 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.37:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 700 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet

Insulation Resistance 1,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm MCX Jack Connector Crimp/Solder Attachment for RG179, RG187 PE44300

PE44300 REV 1.1 1
