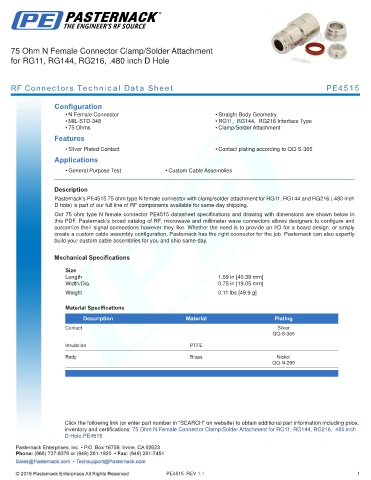

75 Ohm N Female Connector Clamp/Solder Attachment
for RG11, RG144, RG216, .480 inch D Hole

RF Connectors Technical Data Sheet PE4515

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348 • RG11, RG144, RG216 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4515 75 ohm type N female connector with clamp/solder attachment for RG11, RG144 and RG216 (.480 inch
D hole) is part of our full line of RF components available for same-day shipping.
Our 75 ohm type N female connector PE4515 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.59 in [40.39 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.11 lbs [49.9 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Female Connector Clamp/Solder Attachment for RG11, RG144, RG216, .480 inch
D Hole PE4515

PE4515 REV 1.1 1
