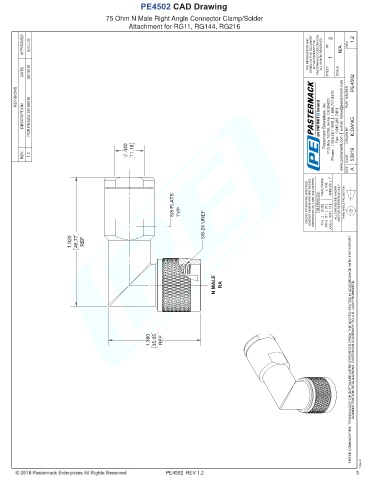

PE4502 CAD Drawing
75 Ohm N Male Right Angle Connector Clamp/Solder
Attachment for RG11, RG144, RG216

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 2 1 N/A REV 1.2

DATE 06/18/19 SHEET OF SCALE PE4502

REVISIONS PART NUMBER

DESCRIPTION PCR PE4502 20190618 Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

.440 11.18 DRAWN BY
REV. 1.2 CAGE SIZE 53919 A

5/8 FLATS TYP UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

5/8-24 UNEF .X=± .XX=± .XXX=±

1.920 48.77 REF

N MALE RA

1.380 35.05 REF THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

T-Rev.B
PE4502 REV 1.2 5
