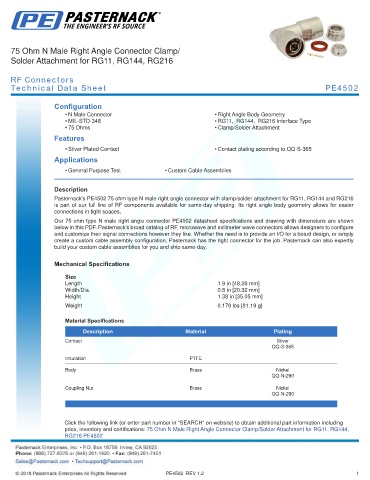

75 Ohm N Male Right Angle Connector Clamp/
Solder Attachment for RG11, RG144, RG216

RF Connectors
Technical Data Sheet PE4502

Configuration
• N Male Connector • Right Angle Body Geometry
• MIL-STD-348 • RG11, RG144, RG216 Interface Type
• 75 Ohms • Clamp/Solder Attachment
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4502 75 ohm type N male right angle connector with clamp/solder attachment for RG11, RG144 and RG216
is part of our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier
connections in tight spaces.
Our 75 ohm type N male right angle connector PE4502 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.9 in [48.26 mm]
Width/Dia. 0.8 in [20.32 mm]
Height 1.38 in [35.05 mm]
.
Weight 0.179 lbs [81.19 g]
.
Material Specifications

Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290

.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: 75 Ohm N Male Right Angle Connector Clamp/Solder Attachment for RG11, RG144,
RG216 PE4502

PE4502 REV 1.2 1
