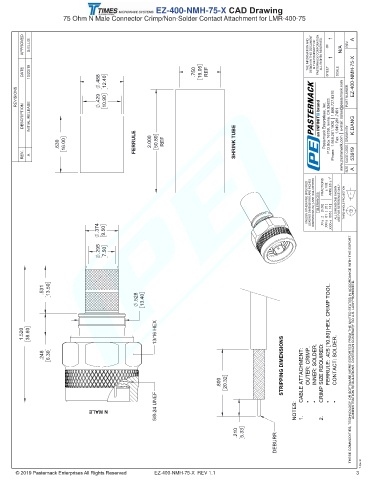

EZ-400-NMH-75-X CAD Drawing
75 Ohm N Male Connector Crimp/Non-Solder Contact Attachment for LMR-400-75

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 10/23/19 .488 12.40 .750 19.05 REF SHEET OF SCALE EZ-400-NMH-75-X

REVISIONS .429 10.90 PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

DRAWN BY
.630 16.00 FERRULE 2.000 50.80 REF SHRINK TUBE
REV. A CAGE CODE SIZE 53919 A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.374 9.50 .X=± .XX=± .XXX=±

.295 7.50

.531 13.50

.528 13.40

1.520 38.60 13/16 HEX FERRULE: .425 [10.80] HEX. CRIMP TOOL.

THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
.248 6.30
STRIPPING DIMENSIONS OUTER: CRIMP. INNER: SOLDER. CONTACT: SOLDER.
CABLE ATTACHMENT: CRIMP SIZE REQUIRED:
.800 20.32

5/8-24 UNEF NOTES: • • • •

N MALE
1. 2. -
.210 5.33 Pasternack does not make
DEBURR
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
EZ-400-NMH-75-X REV 1.1 3
