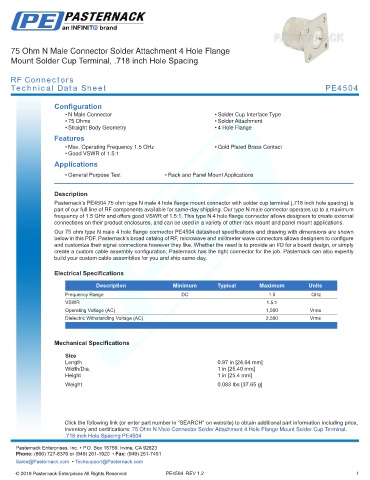

75 Ohm N Male Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .718 inch Hole Spacing

RF Connectors
Technical Data Sheet PE4504

Configuration
• N Male Connector • Solder Cup Interface Type
• 75 Ohms • Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Max. Operating Frequency 1.5 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4504 75 ohm type N male 4 hole flange mount connector with solder cup terminal (.718 inch hole spacing) is
part of our full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum
frequency of 1.5 GHz and offers good VSWR of 1.5:1. This type N 4 hole flange connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our 75 ohm type N male 4 hole flange connector PE4504 datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1.5 GHz
VSWR 1.5:1
Operating Voltage (AC) 1,000 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 0.97 in [24.64 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.083 lbs [37.65 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, -
.718 inch Hole Spacing PE4504 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4504 REV 1.2 1
