75 Ohm N Male Connector Crimp/Non-Solder
Contact Attachment for LMR-400-75

RF Connectors

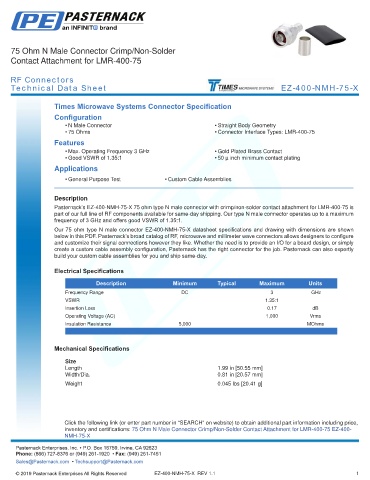

Technical Data Sheet EZ-400-NMH-75-X

Times Microwave Systems Connector Specification
Configuration
• N Male Connector • Straight Body Geometry
• 75 Ohms • Connector Interface Types: LMR-400-75
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 50 µ inch minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s EZ-400-NMH-75-X 75 ohm type N male connector with crimp/non-solder contact attachment for LMR-400-75 is
part of our full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum
frequency of 3 GHz and offers good VSWR of 1.35:1.
Our 75 ohm type N male connector EZ-400-NMH-75-X datasheet specifications and drawing with dimensions are shown
below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure
and customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
Insertion Loss 0.17 dB
Operating Voltage (AC) 1,000 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.99 in [50.55 mm]
Width/Dia. 0.81 in [20.57 mm]
.
Weight 0.045 lbs [20.41 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm N Male Connector Crimp/Non-Solder Contact Attachment for LMR-400-75 EZ-400- -
NMH-75-X Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

EZ-400-NMH-75-X REV 1.1 1
