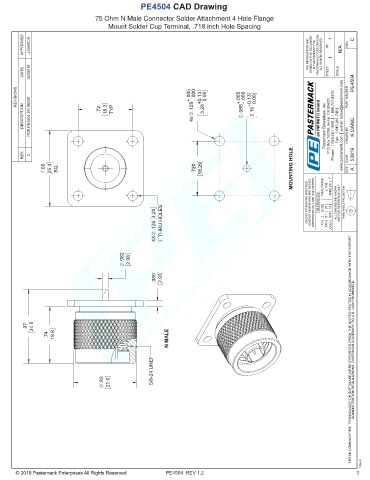

PE4504 CAD Drawing
75 Ohm N Male Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .718 inch Hole Spacing

APPROVED J.GARCIA THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV C

DATE 02/28/19 SHEET OF SCALE PE4504

REVISIONS .129 +.005 -.000 3.28 +0.13 0.00 .085 +.005 -.000 2.16 +0.13 0.00 PART NUMBER

DESCRIPTION PCR PE4504 20190228 .72 18.3 TYP 4x Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com DRAWN BY K.DANG

REV. C CAGE 53919

1.00 25.4 SQ. .720 18.29 MOUNTING HOLE SIZE A
FRACTIONS ± 1/32 ANGLES ± 1°

3.20 UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: .2 [5.08] .01 [ .25 ] .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.126 THRU HOLES .X=± .XX=± .XXX=±

4X

.082 2.08

.080 2.03

.97 24.5
.74 18.8 N MALE
THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.
5/8-24 UNEF

.83 21.0

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

T-Rev.B
PE4504 REV 1.2 3
