  • Frequency range up to 2.5 GHz
  • Patented hybrid (SASD, MOV and Gas Tube) surge protection design
  • VSWR < 1.1:1
  • 0.1dB typ. Insertion Loss
  • DC pass
  • Waterproof IP67 rated
  • Available with bracket mounting

Hybrid Design RF Surge Protector series

are in stock and ship same-day

▼ Click on the links below for more details

Hybrid Design RF Surge Protectors


Part No.

& Additional

Views

Frequency
Band

Max
Power
(W)

Max Surge
Current
(kA)

VSWR

Connector

Series

(Input)

Connector

Series

(Output)

Type N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body   PE73SP1010

0.8 - 2.5 GHz

300

20

1.1:1

N Female

N Female
  • descrType N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body
  • descrType N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body

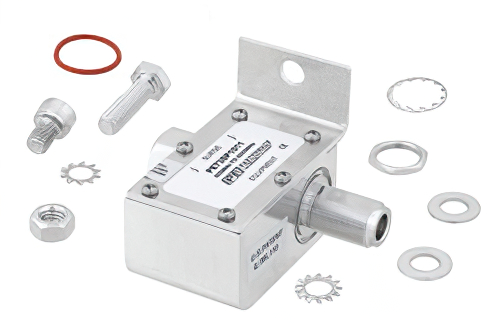

Type N M/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body   PE73SP1011

0.8 - 2.5 GHz

300

20

1.1:1

N Male

N Female
  • descrType N M/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body
  • descrType N M/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body

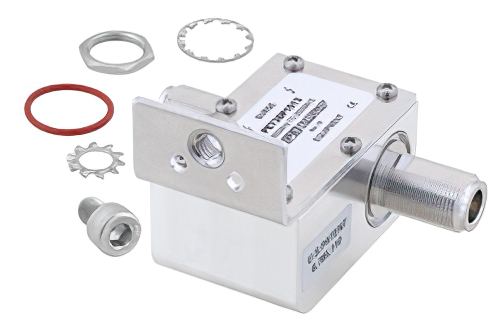

Type N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Away from Arrestor   PE73SP1013

0.8 - 2.5 GHz

300

20

1.1:1

N Female

N Female
  • descrType N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Away from Arrestor
  • descrType N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Away from Arrestor


Type N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body   PE73SP1014

0.8 - 2.5 GHz

300

20

1.1:1

N Female

N Female
  • descrType N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body
  • descrType N F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body

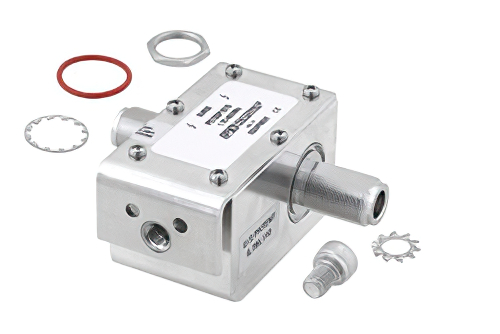

Type N F/F In/Out Coax RF Surge Protector 40MHz - 400MHz DC Pass 100W IP67 2.5mJ 20kA Hybrid Bracket Toward Body   PE73SP1015

40 - 400 MHz

100

20

1.1:1

N Female

N Female
  • descrType N F/F In/Out Coax RF Surge Protector 40MHz - 400MHz DC Pass 100W IP67 2.5mJ 20kA Hybrid Bracket Toward Body
  • descrType N F/F In/Out Coax RF Surge Protector 40MHz - 400MHz DC Pass 100W IP67 2.5mJ 20kA Hybrid Bracket Toward Body


TNC F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body   PE73SP1016

0.8 - 2.5 GHz

300

20

1.1:1

TNC Female

TNC Female
  • descrTNC F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body
  • descrTNC F/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body

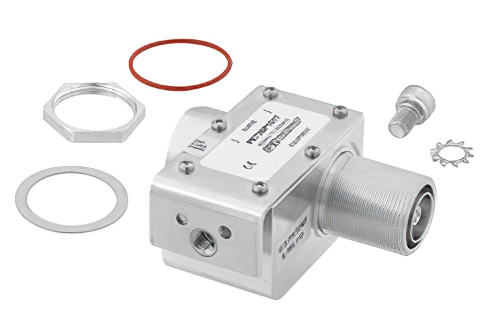

7/16 M/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body   PE73SP1017

0.8 - 2.5 GHz

300

20

1.1:1

7/16 DIN Male

7/16 DIN Female
  • descr7/16 M/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body
  • descr7/16 M/F In/Out Coax RF Surge Protector 800MHz - 2.5GHz DC Pass 300W IP67 175uJ 20kA Hybrid Bracket Toward Body

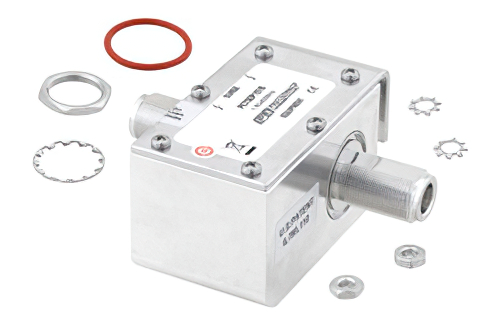

Type N F/F In/Out Coax RF Surge Protector 40MHz - 400MHz DC Pass 100W IP67 2.5mJ 20kA Hybrid Bracket Toward Body Stud   PE73SP1018

40 - 400 MHz

100

20

1.1:1

N Female

N Female
  • descrType N F/F In/Out Coax RF Surge Protector 40MHz - 400MHz DC Pass 100W IP67 2.5mJ 20kA Hybrid Bracket Toward Body Stud
  • descrType N F/F In/Out Coax RF Surge Protector 40MHz - 400MHz DC Pass 100W IP67 2.5mJ 20kA Hybrid Bracket Toward Body Stud

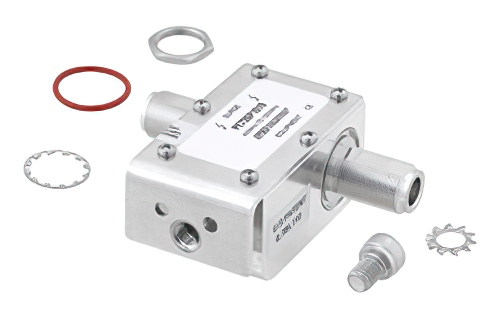

Type N F/F In/Out Coax RF Surge Protector 400MHz - 1.2GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body   PE73SP1019

0.4 - 1.2 GHz

300

20

1.1:1

N Female

N Female
  • descrType N F/F In/Out Coax RF Surge Protector 400MHz - 1.2GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body
  • descrType N F/F In/Out Coax RF Surge Protector 400MHz - 1.2GHz DC Pass 300W IP67 500uJ 20kA Hybrid Bracket Toward Body


Select a category below for more RF Surge Protectors

Surge Filter  |  Hybrid  |  Gas Tube  |   main page

Hybrid Design RF Surge Protectors Series from Pasternack

Pasternack stocks a wide selection of RF coax lightning and surge protectors that feature a patented hybrid (SASD, MOV and Gas Tube) surge protection design.

These RF coax surge protectors are perfect for use in cellular base stations, public safety systems, Wi-Fi networks, active antenna systems, and GPS system applications.

Additional features of these coax surge protectors include frequency range up to 2.5 GHz, VSWR < 1.1:1, 0.1dB typ. Insertion Loss, DC pass and they are available with a bracket mounting option.

These surge arrestors are in stock and available for immediate shipment.
