Low IL repeatability electro-mechanical relay switch series is in stock and ships same-day

• Low IL Repeatability Switch SPDT, SP4T, and SP6T Models Available

• Broadband Frequencies Ranging from DC to 40 GHz

• Low Insertion Loss Repeatability of 0.03 to 0.05 dB Guaranteed Over
  5M to 10M Cycles

• Switch designs use Latching Actuators, Indicators, Self-Cut Off, TTL, & 50Ω
  Terminations

• Relay Switch High Input Power Handling up to 70 Watts CW

• Electromechanical Hot Switch Rated up to 1 Watt CW max

• Low Insertion Loss of 0.3 dB & High Isolation Levels up to 100 dB

• Rugged Military Grade Designs meet MIL-STD-202 Conditions

Low Insertion Loss Repeatability Electromechanical Relay Switches from Pasternack


Part No.
additional views

Low IL Switch
Configuration

Frequency
Range
(GHz)

Actuator /
Features

Insertion Loss
Repeatability
(dB)

Insertion
Loss, Typ
(dB)

Isolation,
Typ
(dB)

Cold Switching
Average Input Power
(Max Watts)

RF / Control
Connectors

Low Insertion Loss Repeatability Electromechanical Relay Switch Series

Pasternack’s electromechanical switches cover broadband frequencies from DC to 40 GHz. They exhibit very low insertion loss repeatability with guaranteed levels of 0.03 to 0.05 dB over 5 to 10 million switching cycles depending on the model.

The switches are offered in three configurations: single-pole double-throw (SPDT), single-pole four-throw (SP4T) and single-pole six-throw (SP6T).  They are designed with latching actuators and desirable features that include indicators, self-cut-off, TTL and 50 Ohm terminations.

 Impressive performance includes low insertion loss of 0.3 dB with high Isolation of 100 dB typical, and input power ratings of up to 70 watts CW and up to 1 watt for hot switching applications. Additionally, these rugged and compact coaxial package assemblies are RoHS and REACH compliant, shielded for EMI/RFI suppression and magnetic fields. They are highly reliable and guaranteed to meet a series of MIL-STD-202 environmental test conditions that includes exposure to temperature cycle, humidity, altitude, vibration and shock.

Depending on the model and frequency, these electromechanical switches are available with SMA or 2.92mm connectors, some models support ribbon cable assemblies for DC, indicator, and TTL logic controls. All models are export rated as EAR99 and have an operating temperature range of -20°C to +70°C.

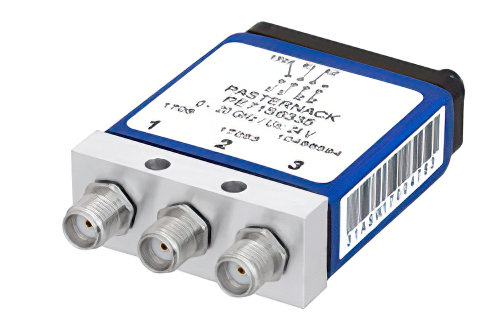

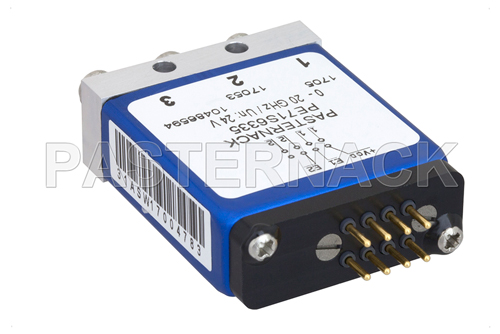

SPDT 0.03 dB Low Insertion Loss Repeatability Electromechanical Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, SMA   PE71S6335

SPDT

DC to 20

Latching /
Indicators /
Self Cut Off

0.3

0.03

85

1

SMA /
Solder Pins



  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Electromechanical Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Electromechanical Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Electromechanical Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Electromechanical Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, SMA

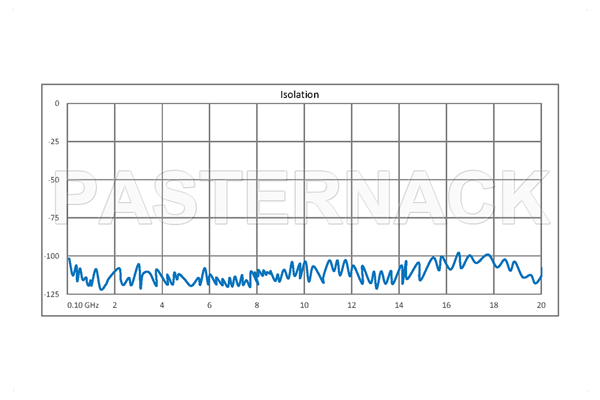

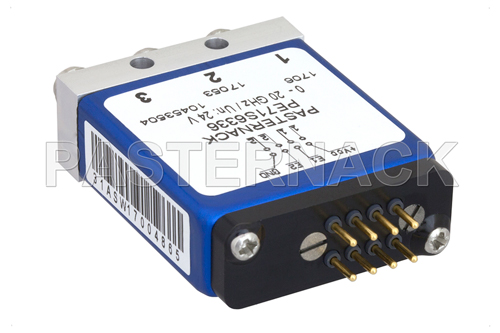

SPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, SMA   PE71S6336

SPDT

DC to 20

Latching /
Inidicators /
Self Cut Off / TTL

0.3

0.03

85

1

SMA /
Solder Pins



  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, SMA

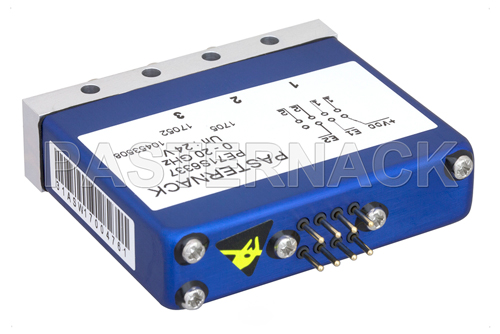

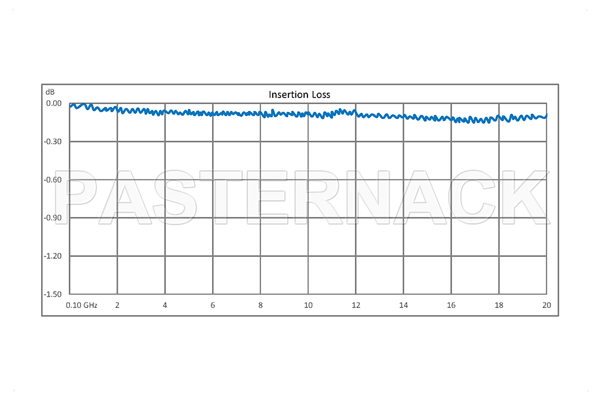

SPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, Terminated, SMA   PE71S6337

SPDT

DC to 20

Latching /
Indicators / Self Cut Off /
Terminated

0.3

0.03

85

1

SMA /
Solder Pins



  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, Terminated, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, Terminated, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, Terminated, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, Terminated, SMA

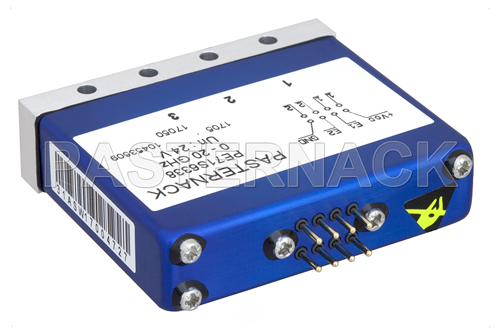

SPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, Terminated, SMA   PE71S6338

SPDT

DC to 20

Latching /
Indicators / Self Cut Off
/ TTL / Terminated

0.3

0.03

85

1

SMA /
Solder Pins



  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, Terminated, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, Terminated, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, Terminated, SMA
  • descrSPDT 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, DC to 20 GHz, 1W, 24V, Indicators, Self Cut Off, TTL, Terminated, SMA

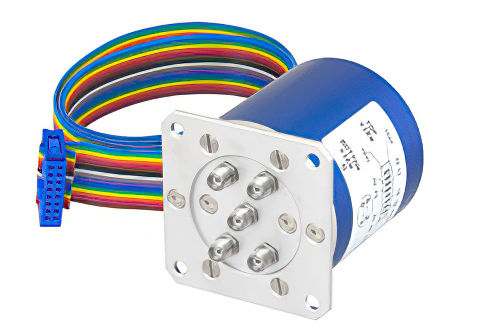

SP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA   PE71S6333

SP4T

DC to 20

Latching /
Inidicators /
Self Cut Off

0.4

0.03

100

70

SMA / HE10
Recepticle and
Cable



  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA
  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA
  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA
  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA

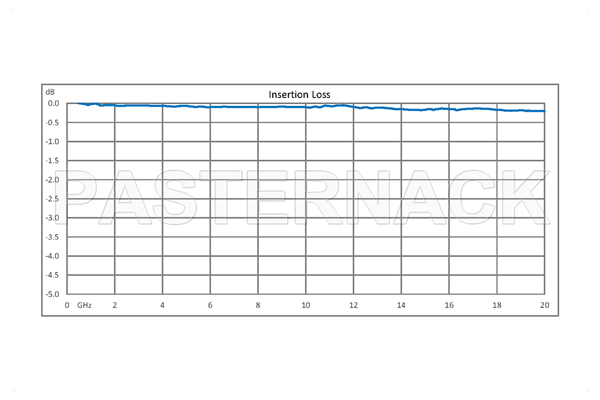

SP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA   PE71S6341

SP4T

DC to 20

Latching /
Inidicators /
Self Cut Off / TTL

0.4

0.03

100

70

SMA / HE10
Recepticle and
Cable



  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSP4T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA

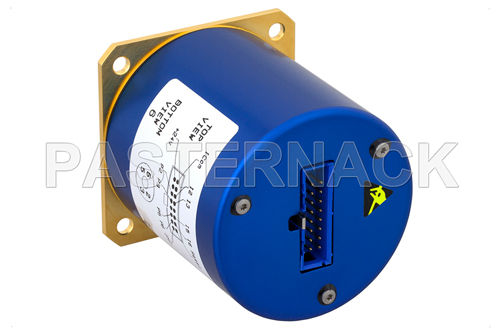

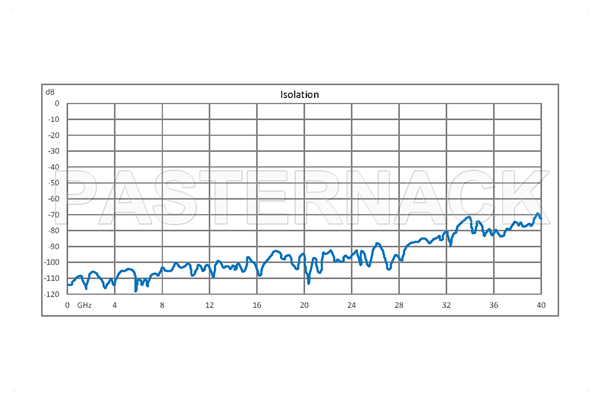

SP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm   PE71S6334

SP4T

DC to 40

Lathcing /
Inidicators /
Self Cut Off

0.4

0.05

100

5

2.92mm / HE10
Recepticle and
Cable



  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm
  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm
  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm
  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm

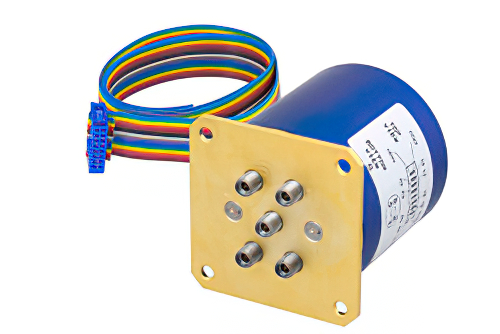

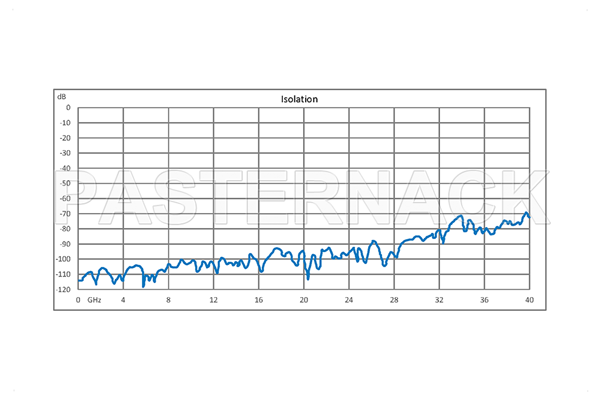

SP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm   PE71S6342

SP4T

DC to 40

Latching /
Indicators / TTL /
Terminated

0.4

0.05

100

5

2.92mm / HE10
Recepticle and
Cable



  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm
  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm
  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm
  • descrSP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm

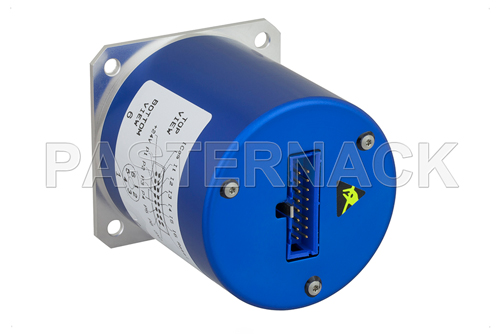

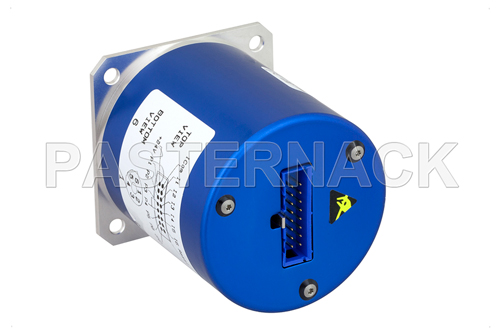

SP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA   PE71S6331

SP6T

DC to 20

Latching /
Indicators / Self Cut Off
/ Terminated

0.4

0.03

100

70

SMA / HE10
Recepticle and
Cable



  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA
  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA
  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA
  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, SMA



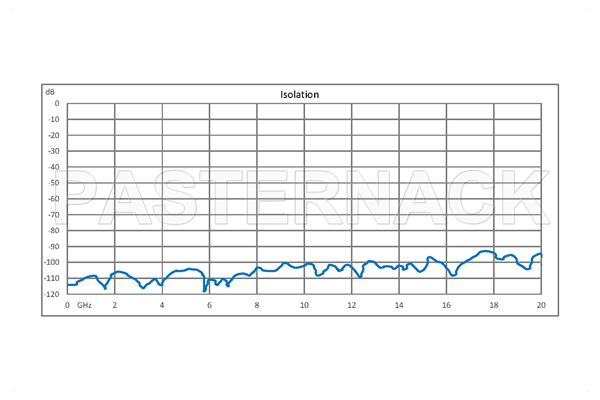

SP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA   PE71S6339

SP6T

DC to 20

Latching /
Indicators / Self Cut Off
/ TTL / Terminated

0.4

0.03

100

70

SMA / HE10
Recepticle and
Cable



  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA
  • descrSP6T 0.03 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 20 GHz, 70W, 24V, Indicators, Self Cut Off, TTL, SMA

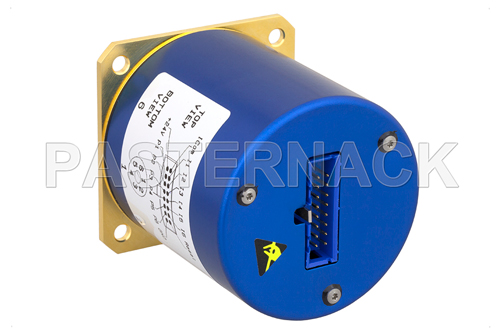

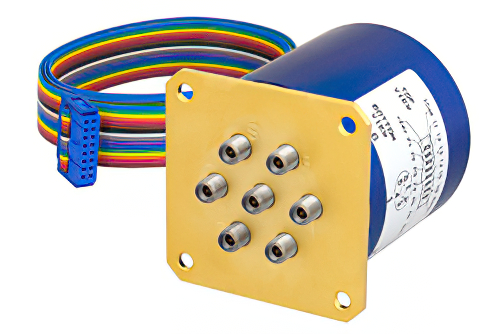

SP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm   PE71S6332

SP6T

DC to 40

Latching /
Indicators / Self Cut Off
/ Terminated

0.4

0.05

100

5

2.92mm / HE10
Recepticle and
Cable



  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm
  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm
  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm
  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm

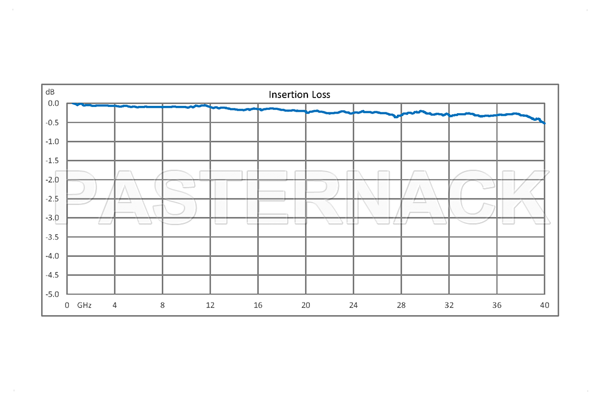

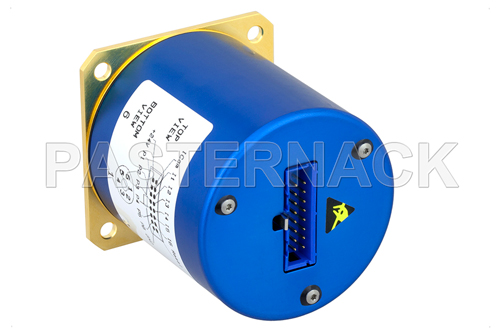

SP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm   PE71S6340

SP6T

DC to 40

Latching /
Indicators / TTL /
Terminated

0.4

0.05

100

5

2.92mm / HE10
Recepticle and
Cable



  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm
  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm
  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm
  • descrSP6T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, TTL, 2.92mm



For a complete list of Pasternack's products please click here
