Low Power SP4T Terminated Electromechanical Relay Switches (<10 Watts)

Check out our new RF calculators & conversion tools...

SP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm

Product ID: PE71S6334
SP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm

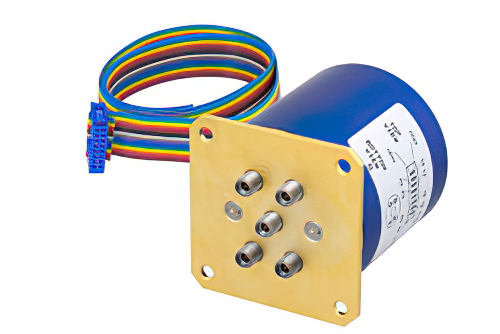

Image Views:  SP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm high resolution
Zoomalternate image

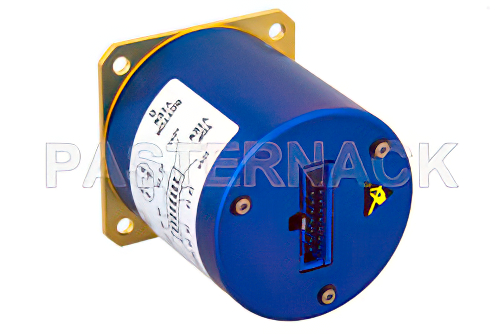

View 2


Click for:PE71S6334 Datasheet
Click for:PE71S6334 RoHS Cert
Click for:PE71S6334 REACH Cert
Available Quantity: 4
Pricing Table
QUANTITYPRICE
1-1$6,819.82
2-4$6,410.63
5-9$6,069.64
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series2.92mm
Connector GenderFemale
Switch DesignSP4T
Minimum FrequencyDC
Maximum Frequency40 GHz
Impedance50 Ohm
Maximum Input Power5 Watts
Maximum Insertion Loss0.5 dB


SP4T 0.05 dB Low Insertion Loss Repeatability Relay Latching Switch, Terminated, DC to 40 GHz, 5W, 24V, Indicators, Self Cut Off, 2.92mm

PE71S6334 electromechanical RF relay switch from Pasternack is a SP4T design. Our SP4T electromechanical RF switch uses 2.92mm connectors at 50 Ohm. This 2.92mm RF relay SP4T switch has a maximum frequency of 40 GHz and maximum power of 5 Watts. The Pasternack radio frequency SP4T 2.92mm electro-mechanical relay switch is rated at a control voltage of 24 Volts, indicator voltage 60 and switching speed of 15ms.

2.92mm SP4T electro mechanical RF relay switch features Indicators, Self Cut Off, Reset with an isolation minimum of dB. SP4T electromechanical relay radio frequency switch PE71S6334 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our SP4T 2.92mm coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
