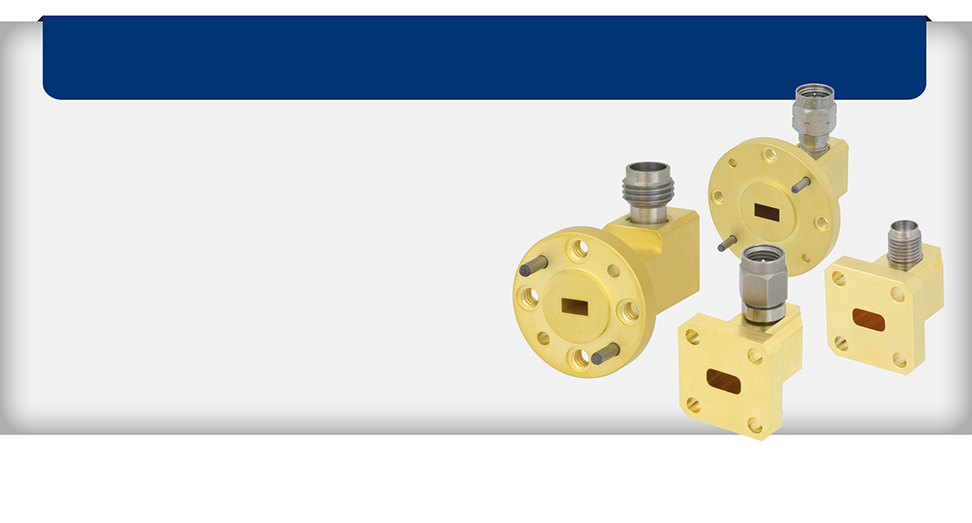

K band through V band Waveguide-to-Coax Adapters

Click below for more waveguide to coax adapter details

  • Frequency range of 18 GHz to 65 GHz in five waveguide bands
  • Five waveguide sizes: WR-15, WR-19, WR-22, WR-28, and WR-42
  • 1.85mm, 2.4mm and 2.92mm coax adapter connector options available
  • Waveguide to coax adapter right angle configuration
  • K-Band through V-Band waveguide adapter VSWR as low as 1.29:1
  • Waveguide coaxial adapter insertion loss as low as 0.3dB



Coax to waveguide adapter series are in stock and ready for same-day shipping!

Part No.

Frequency
Band

(GHz)

Gain

Harmonics

(dBc)

Psat

(Watt)

PAE

(%)

TTL

Control

DC Power

(Volts/Amps)

Mechanical

Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Part No.

Waveguide
Type

Frequency
Band

Insertion
Loss (dB)

VSWR

Waveguide to Coax Adapter Flange

Connector
Type

Connector
Gender

ECCN

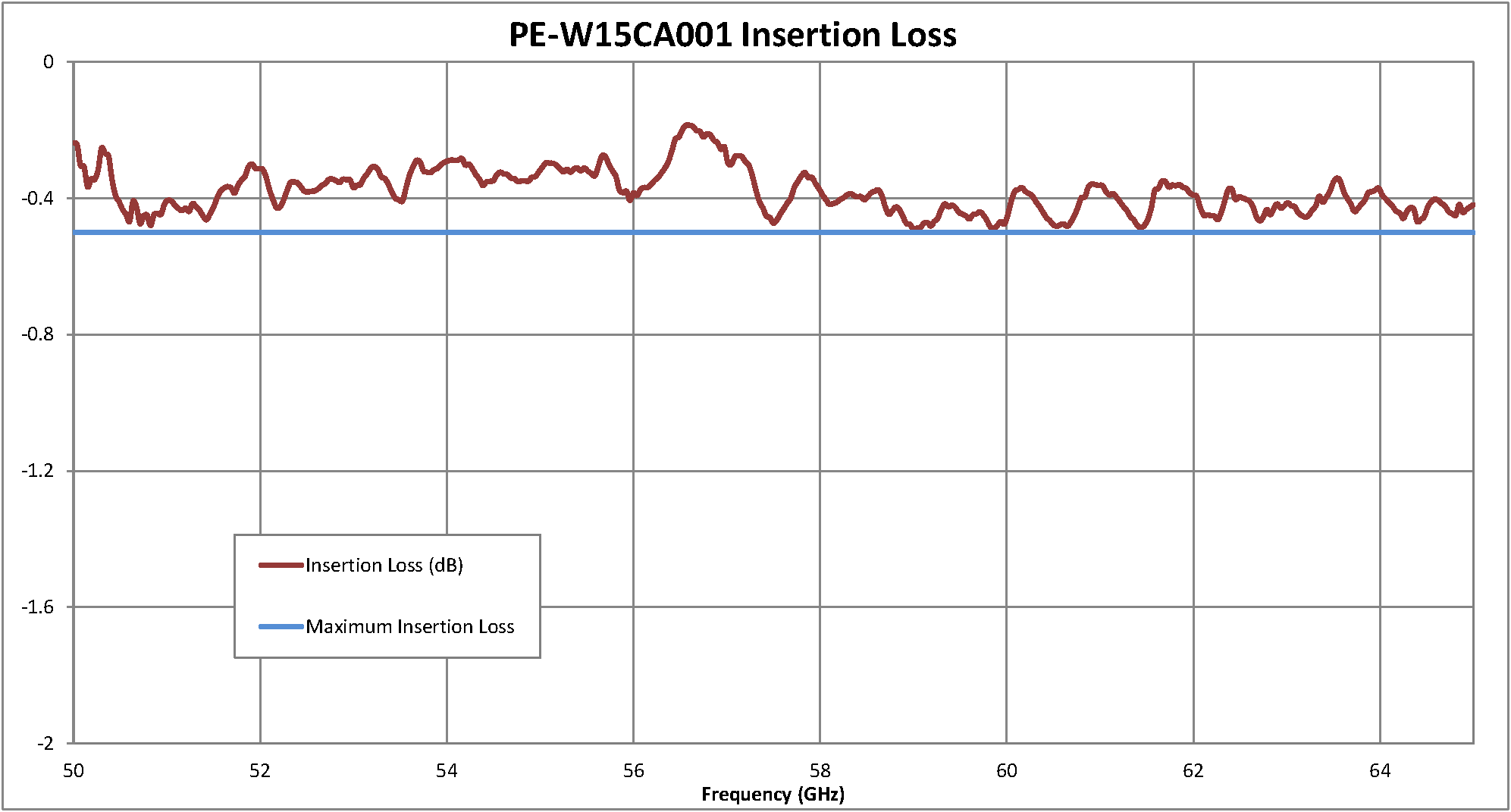

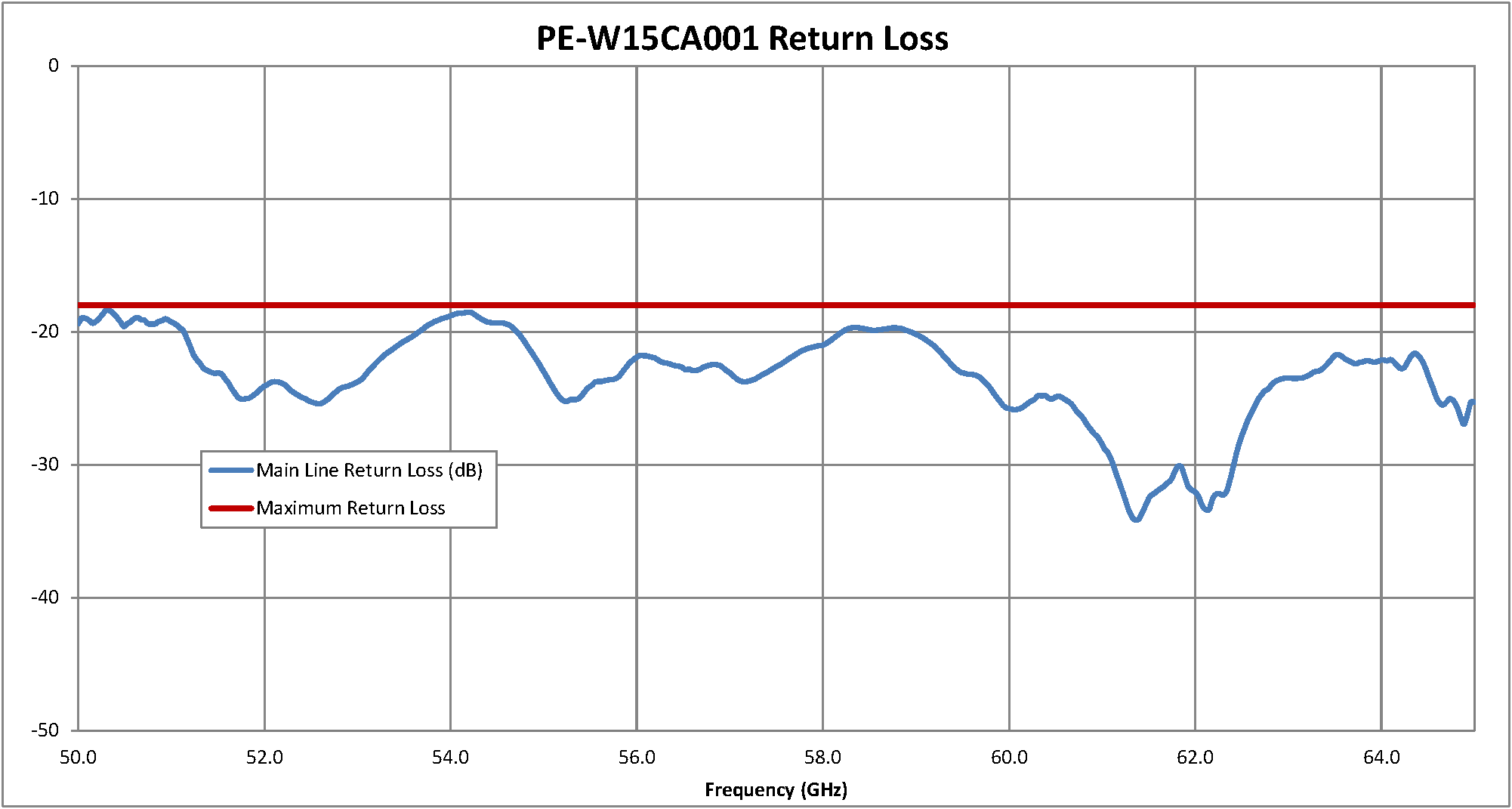

WR-15 With UG-385/U Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz V Band PE-W15CA001

WR-15

V Band

0.500

1.433

UG-385/U-Mod

1.85mm

Female

EAR99


WR-15 With UG-385/U Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz V Band PE-W15CA002

WR-15

V Band

0.500

1.433

UG-385/U-Mod

1.85mm

Male

EAR99


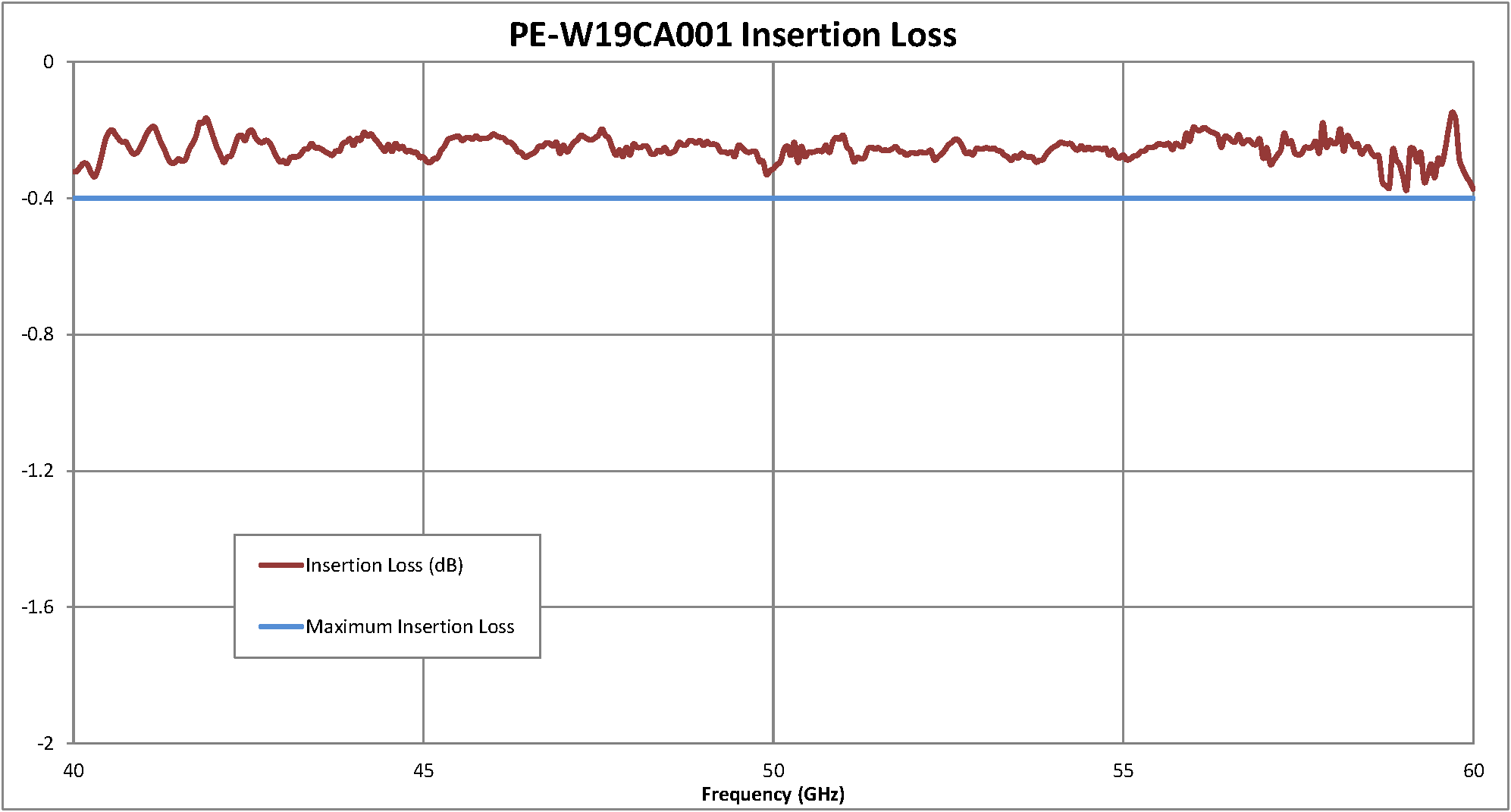

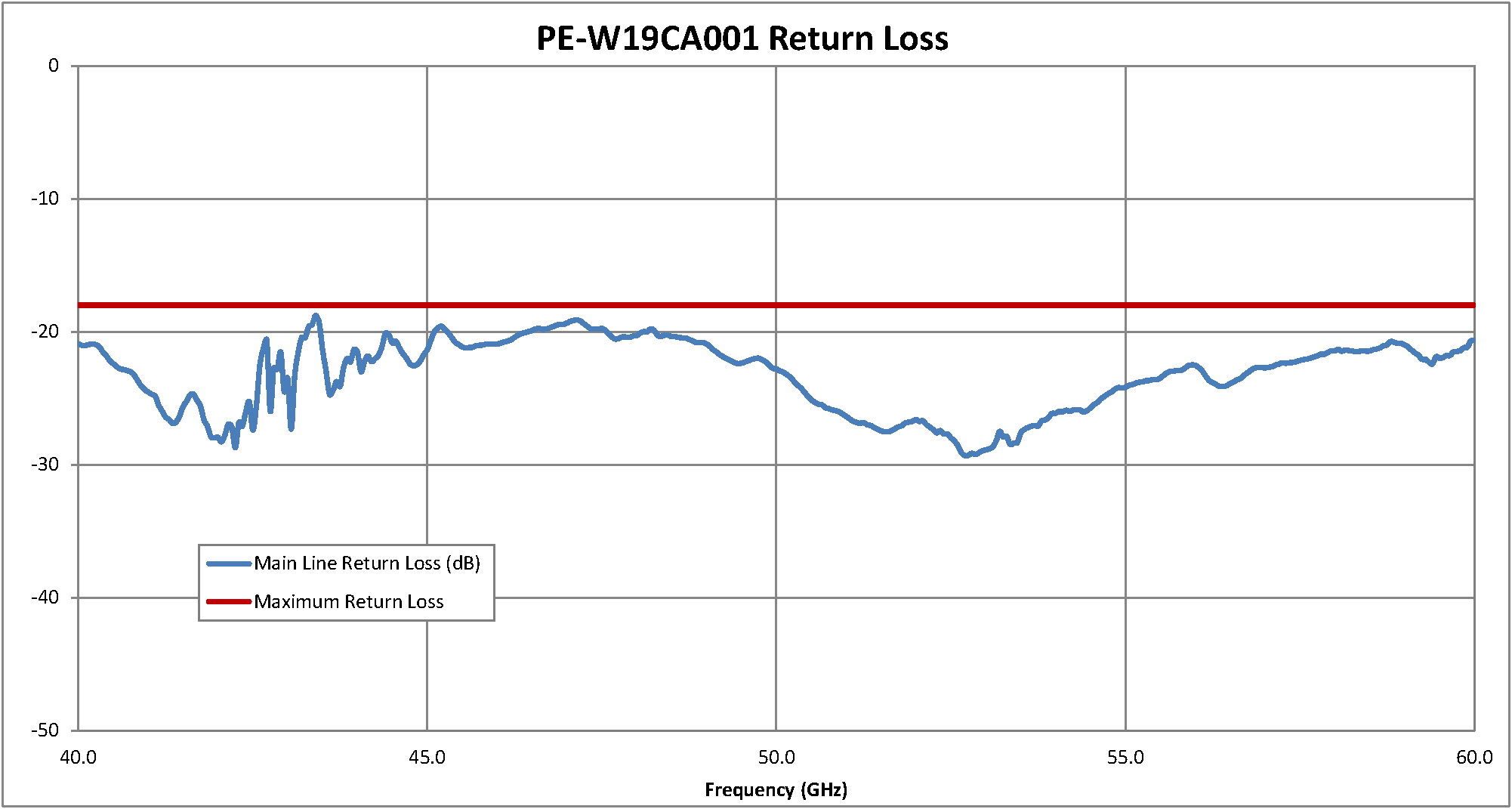

WR-19 With UG383/U-Mod Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz V Band PE-W19CA001

WR-19

U Band

0.400

1.350

UG383/U-Mod-Mod

1.85mm

Female

EAR99


WR-19 With UG383/U-Mod Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz V Band PE-W19CA002

WR-19

U Band

0.400

1.350

UG383/U-Mod-Mod

1.85mm

Male

EAR99


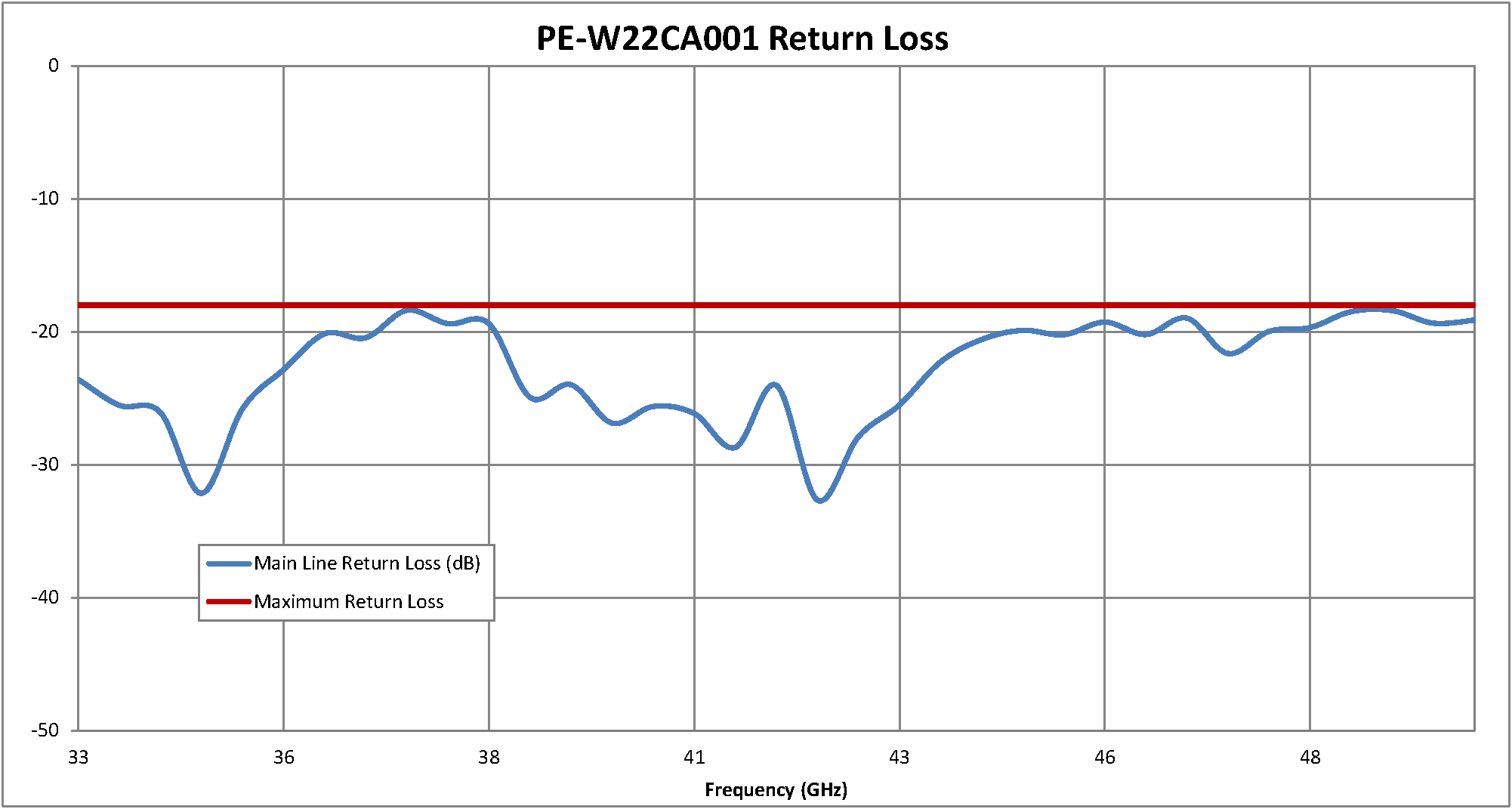

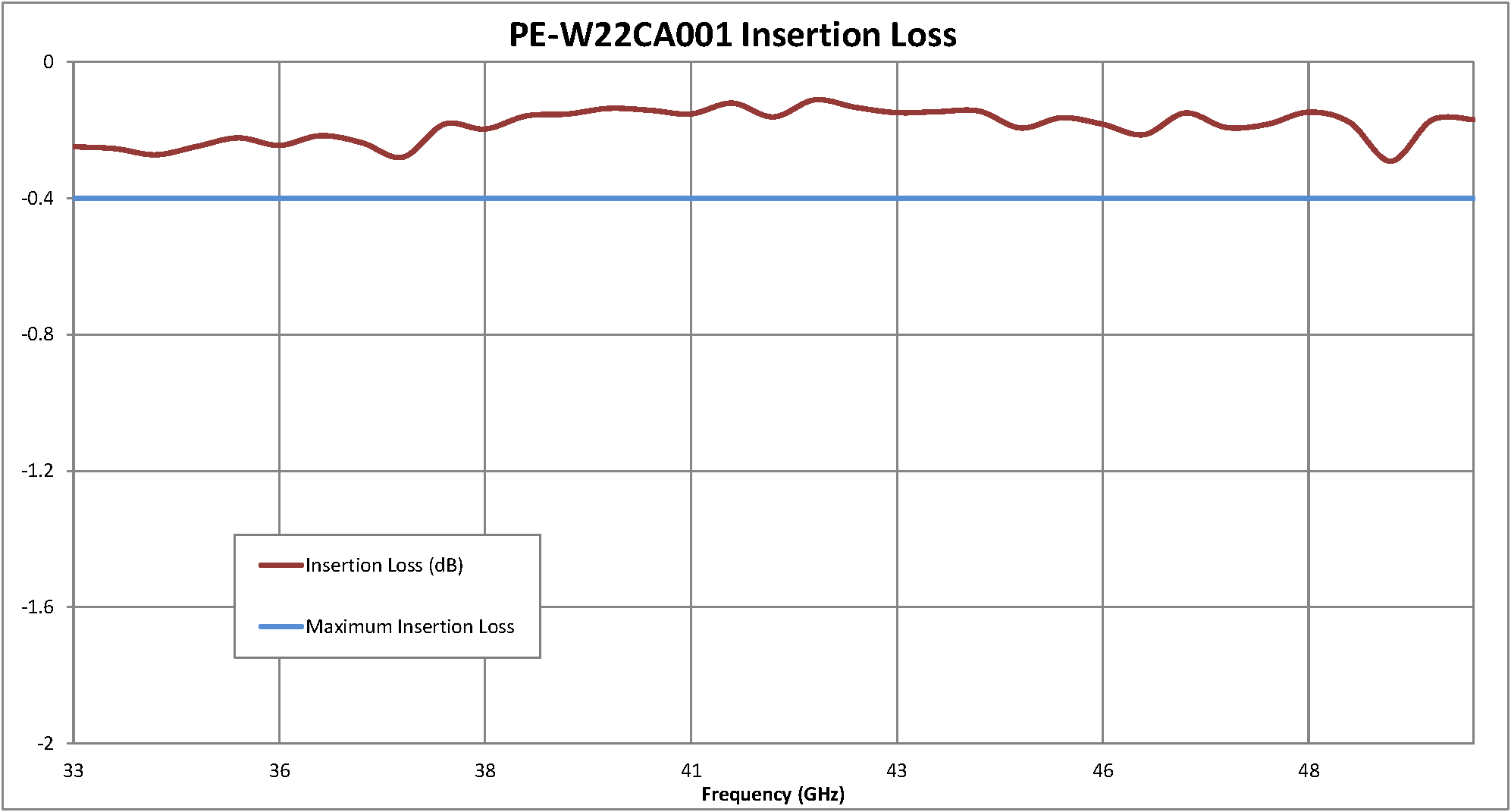

WR-22 With UG-383/U Flange to 2.4mm Female Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz Q Band PE-W22CA001

WR-22

Q Band

0.400

1.288

UG-383/U-Mod

2.4mm

Female

EAR99


WR-22 With UG-383/U Flange to 2.4mm Male Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz Q Band PE-W22CA002

WR-22

Q Band

0.400

1.288

UG-383/U-Mod

2.4mm

Male

EAR99


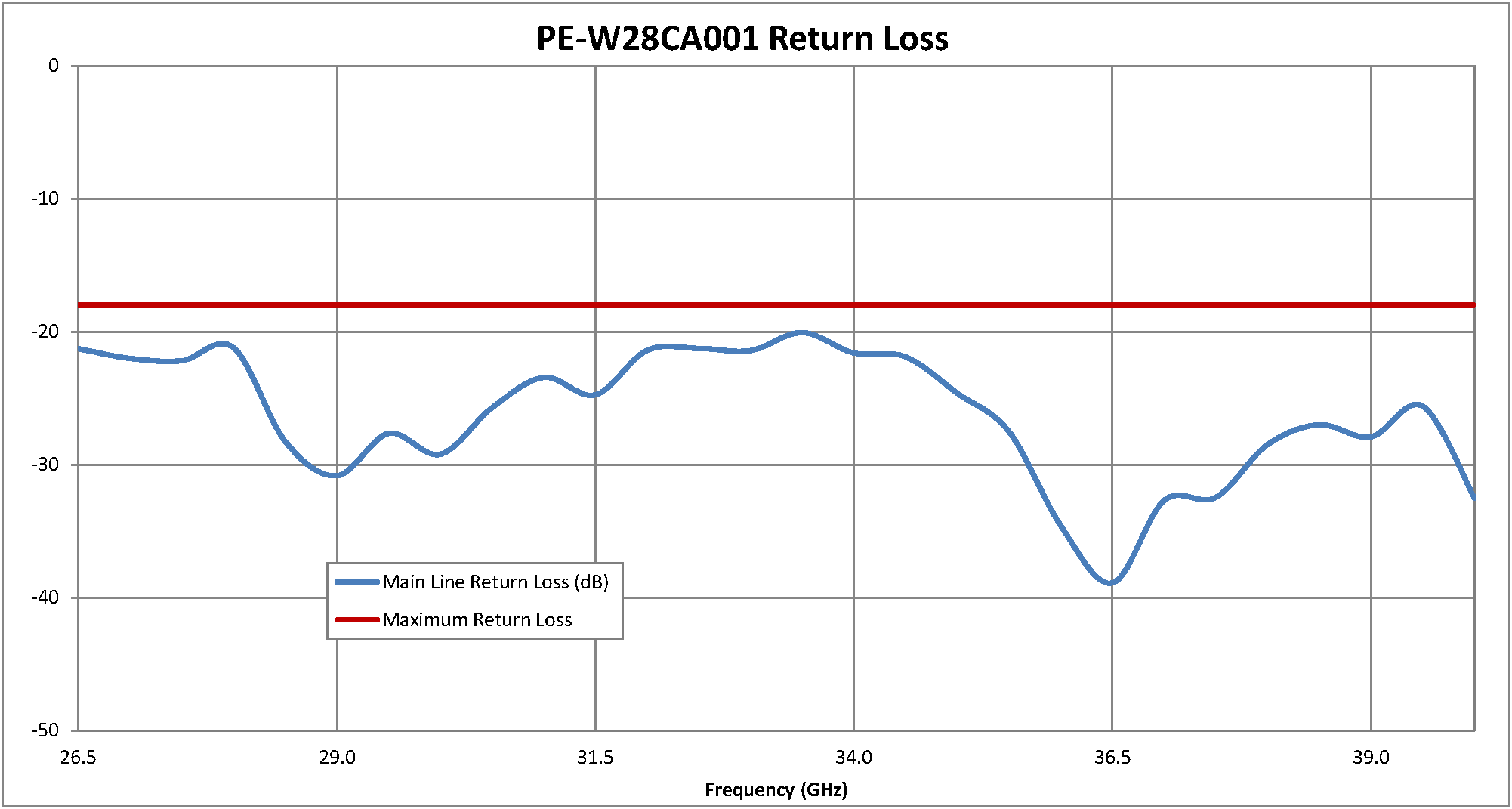

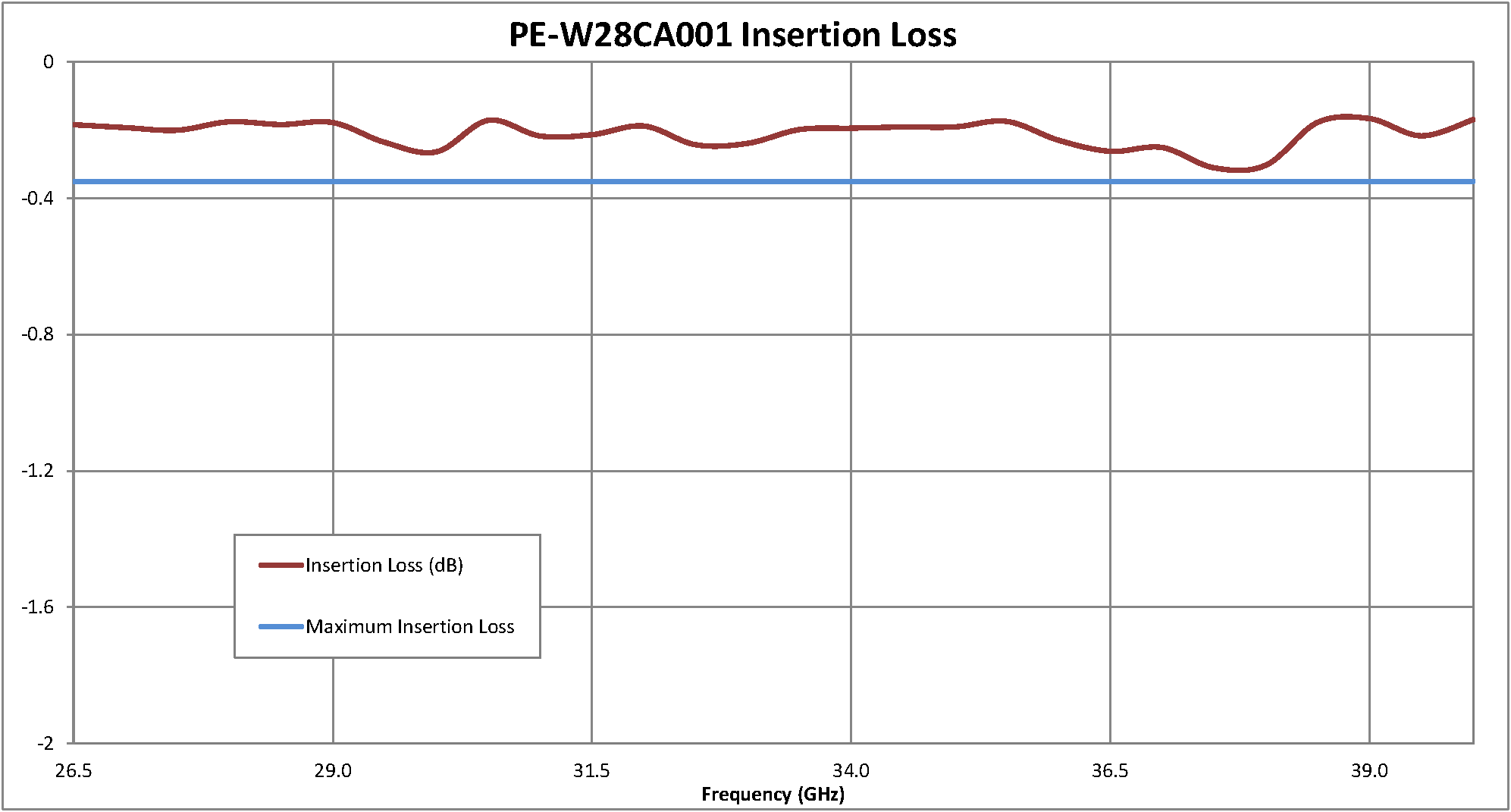

WR-28 With UG-599/U Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz Ka Band PE-W28CA001

WR-28

Ka Band

0.350

1.288

UG-599/U-Mod

2.92mm

Female

EAR99


WR-28 With UG-599/U Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz Ka Band PE-W28CA002

WR-28

Ka Band

0.350

1.288

UG-599/U-Mod

2.92mm

Male

EAR99


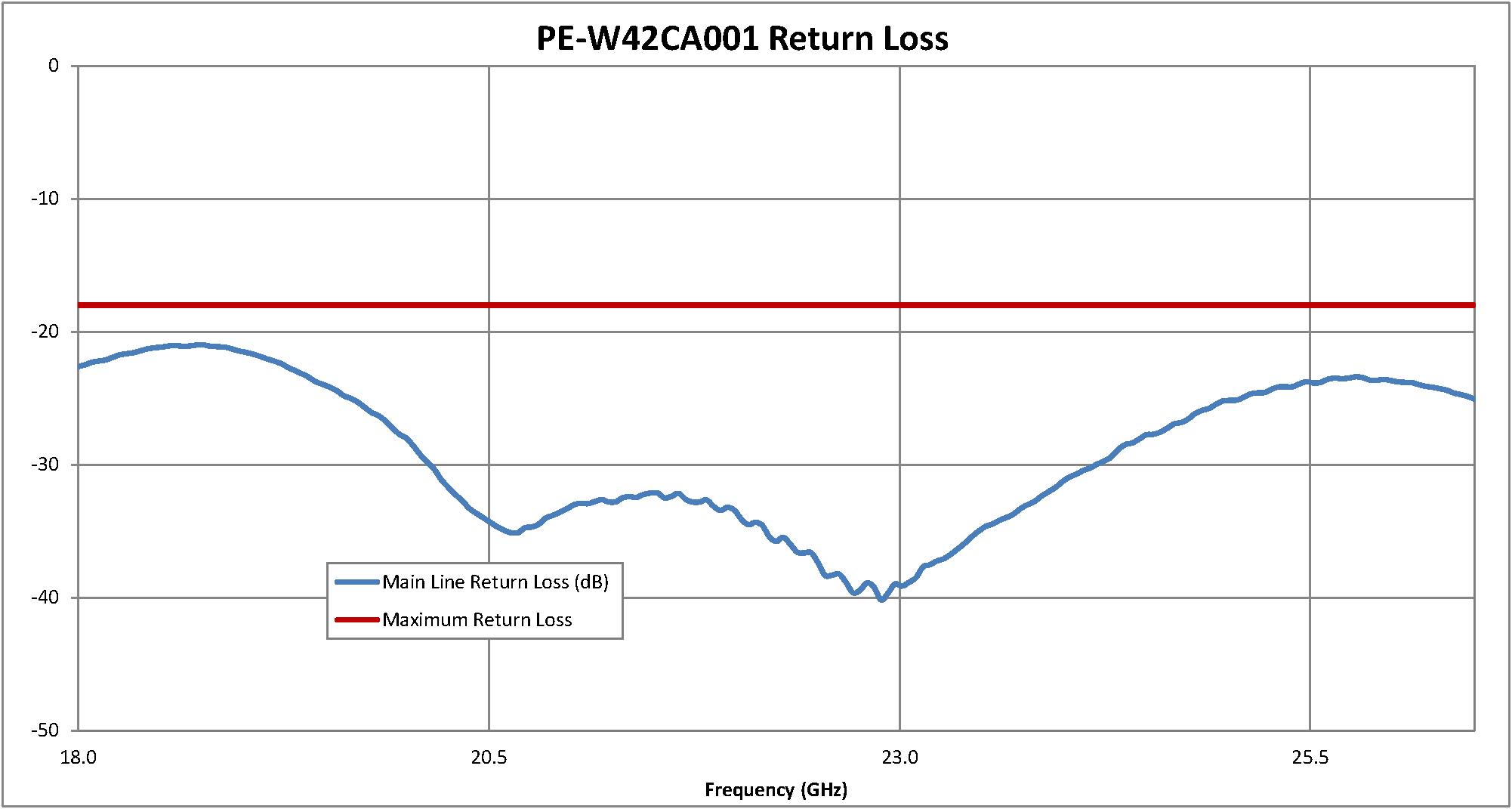

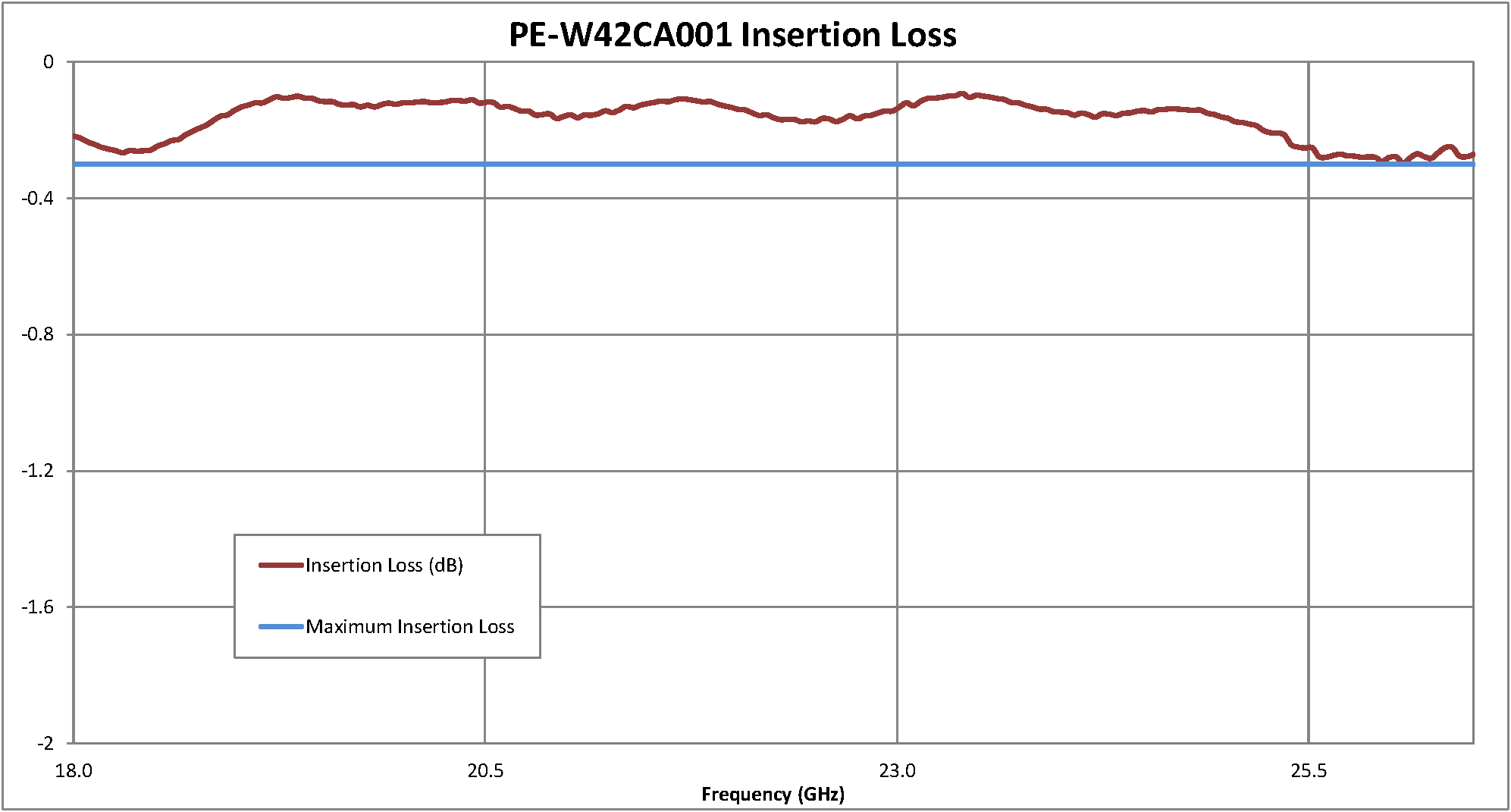

WR-42 With UG595/U Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz Ka Band PE-W42CA001

WR-42

K Band

0.300

1.288

UG595/U-Mod

2.92mm

Female

EAR99


WR-42 With UG595/U Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz Ka Band PE-W42CA002

WR-42

K Band

0.300

1.288

UG595/U-Mod

2.92mm

Male

EAR99



Waveguide to Coax Adapter Series

This waveguide to coax adapter series operates from 18 to 65 GHz. These waveguide adapters are used for any number of applications such as SATCOM, wireless communications, industrial, test and measurement and defense systems whenever there is a requirement to transition from coax to waveguide or vice versa.

The waveguide to coax adapter product line complements our existing portfolio of over 75 waveguide adapters. This offering brings the overall family into the millimeter wave frequency ranges with models in the K-band (18 to 26.5 GHz) up to V-band (50 to 65 GHz). Available coaxial adapter waveguide sizes for these new models include WR-42, WR-28, WR-22, WR-19 and WR-15.

These coax to waveguide adapters exhibit excellent VSWR as low as 1.29:1 while also offering insertion loss performance as low as 0.3 dB. Like the other over 40,000 RF, microwave and millimeter wave components from Pasternack, this waveguide to coax adapter series is in-stock. Not only in stock, but these products will ship the same day as they are bought.
