WR-15 Waveguide Adapters

Check out our new RF calculators & conversion tools...

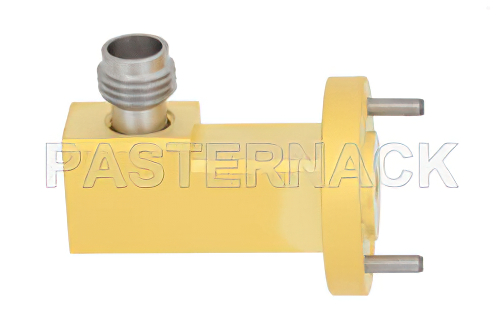

WR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 50 GHz to 65 GHz

Product ID: PE-W15CA001
WR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 50 GHz to 65 GHz


Image Views:  WR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 50 GHz to 65 GHz high resolution
Zoomalternate image
View 2


Click for:PE-W15CA001 Datasheet
Available Quantity: 33
Pricing Table
QUANTITYPRICE
1-1$1,403.93
2-4$1,347.77
5-9$1,291.62
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-15
Coax Connector Impedance50 Ohm
Coax Connector Series1.85mm
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency50 GHz
Maximum Frequency65 GHz
Maximum VSWR1.44:1


WR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 50 GHz to 65 GHz

PE-W15CA001 WR-15 waveguide to coax adapter is also known as a WR-15 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR-15 to 1.85mm connector and has a female gender. Our WR-15 to 1.85mm female waveguide adapter transition has a right angle design and has a round cover flange. Pasternack right angle WR15 to 1.85mm waveguide to coaxial cable transition / adapter has a minimum frequency of 50 GHz and a maximum frequency of 65 GHz.

WR 15 waveguide to 1.85mm transition adapter to coax PE-W15CA001 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-15 waveguide adapter transition with 1.85mm interface can ship worldwide the same day that it is purchased as with our other available RF parts.
