WR-19 Waveguide Adapters

Check out our new RF calculators & conversion tools...

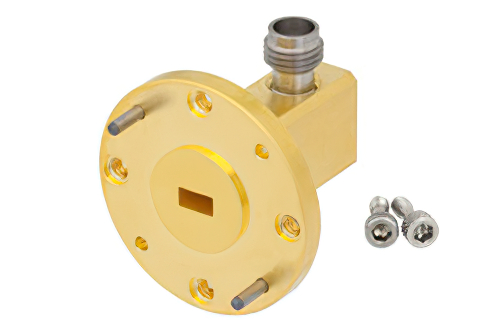

WR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 40 GHz to 60 GHz

Product ID: PE-W19CA001
WR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 40 GHz to 60 GHz


Image Views:  WR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating from 40 GHz to 60 GHz high resolution
Zoomalternate image
View 2


Click for:PE-W19CA001 Datasheet
Available Quantity: 10
Pricing Table
QUANTITYPRICE
1-1$1,509.18
2-4$1,448.81
5-9$1,388.45
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-19
Coax Connector Impedance50 Ohm
Coax Connector Series1.85mm
Coax Connector GenderFemale
Waveguide Adapter StyleRight Angle
Minimum Frequency40 GHz
Maximum Frequency60 GHz
Maximum VSWR1.38:1


WR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band

PE-W19CA001 WR-19 waveguide to coax adapter is also known as a WR-19 waveguide transition. This waveguide to coax adapter / transition is constructed as a WR19 to 1.85mm connector and has a female gender. Our WR-19 to 1.85mm female waveguide adapter transition has a right angle design and has a round cover flange. Pasternack right angle WR-19 to 1.85mm waveguide to coaxial cable transition / adapter has a minimum frequency of 40 GHz and a maximum frequency of 60 GHz.

WR19 waveguide to 1.85mm transition adapter to coax PE-W19CA001 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-19 waveguide adapter transition with 1.85mm interface can ship worldwide the same day that it is purchased as with our other available RF parts.
