Embedded GPS Antennas
  • 16 models of SPDT/DPDT Waveguide Electromechanical Relay Switches Cover Popular X & Ka Frequency Bands from 7.05 to 12.4 GHz and 26.5 to 40 GHz
  • Failsafe Actuator Designs support WR112, WR90, and WR28 Waveguide Sizes with O-Ring Grooves or CPR-Flat Flanges
  • Features include TTL Logic, Position Indicators with Manual Override, and Patented Motor Drive with Arc Suppression
  • Impressive Typical Performance Includes Low Insertion Loss of 0.05 dB and High Isolation > 80 dB
  • High RF Input Power Handling up to 7 kW CW and 202 kW Peak
  • Environmentally Sealed Quick Connect DC Control Connector with Mate Included
  • Fully Weatherized Rugged Packages Designed for 100% Humidity Exposure and -40°C to +85°C Operating Temperature
Waveguide Failsafe Electromechanical Relay Switches from Pasternack


Part No.

& Additional

Views

Frequency
Band
(GHz)

Waveguide
Size

Insertion Loss
Typ (dB)

Isolation
Typ (dB)

CW Input Power
(kWatts)

TTL Logic
Controls

Peak Input
Power Max (Unpressurized) (kWatts)

Control
Voltage
(Volts)

DC Current
Typ (mA)

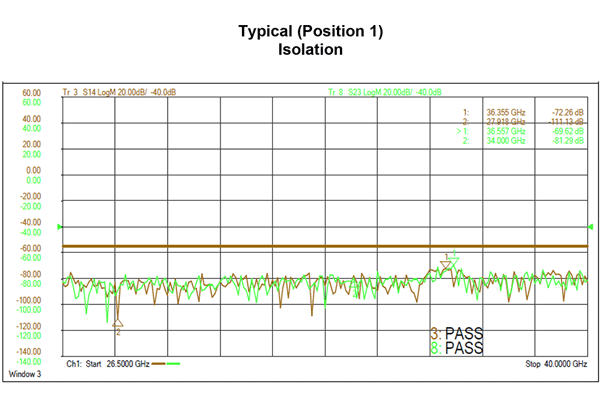

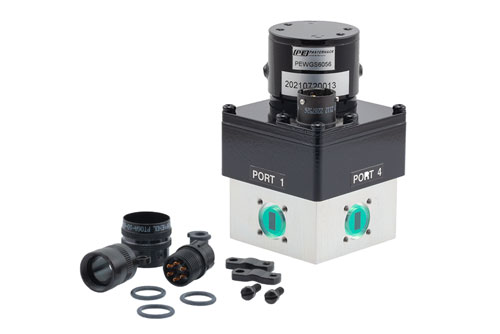

WR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 12V   PEWGS6056

26.5 to 40

WR28

0.07

69

0.55

13.3

No

12

265
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 12V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 12V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 12V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 12V

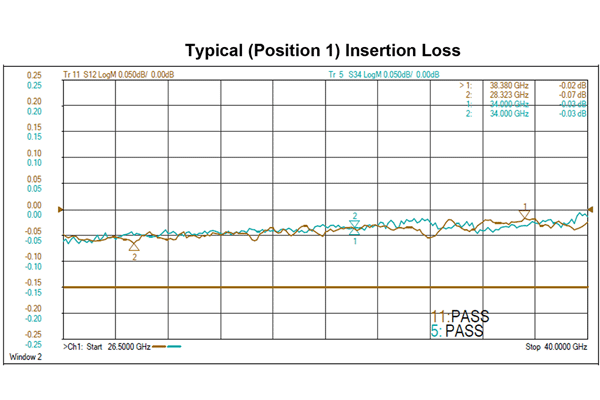

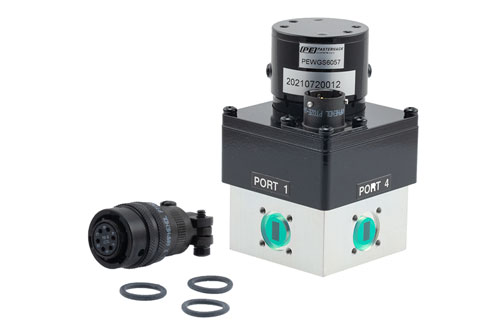

WR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 28V   PEWGS6057

26.5 to 40

WR28

0.07

69

0.55

13.3

No

28

142
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 28V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 28V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 28V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, 28V

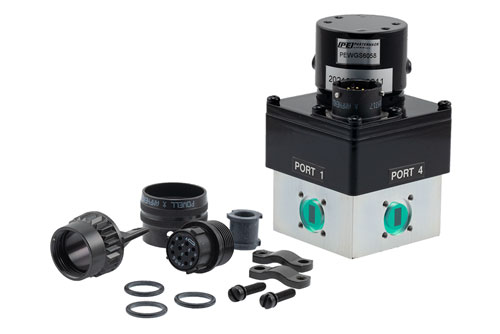

WR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 12V   PEWGS6058

26.5 to 40

WR28

0.07

69

0.55

13.3

Yes

12

240
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 12V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 12V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 12V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 12V


WR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 28V   PEWGS6059

26.5 to 40

WR28

0.07

69

0.55

13.3

Yes

28

140
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 28V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 28V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 28V
  • descrWR28 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 26.5 GHz to 40 GHz, 0.55 kW, O-Ring Groove, TTL, 28V

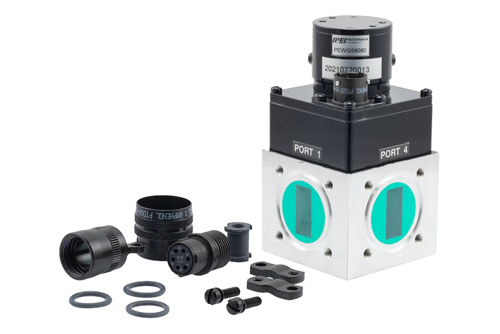

WR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 KW, O-Ring Groove, 12V   PEWGS6060

8.2 to 12.4

WR90

0.05

85

5

123

No

12

250
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 KW, O-Ring Groove, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 KW, O-Ring Groove, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 KW, O-Ring Groove, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 KW, O-Ring Groove, 12V

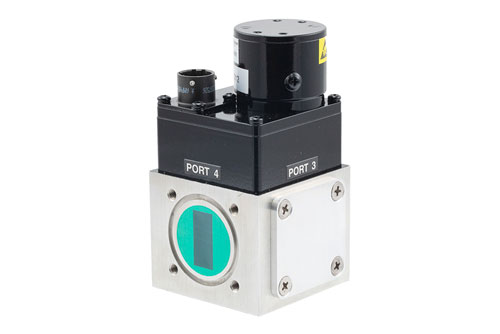

WR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, 28V   PEWGS6061

8.2 to 12.4

WR90

0.05

85

5

123

No

28

140
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, 28V


WR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 12V   PEWGS6062

8.2 to 12.4

WR90

0.05

85

5

123

Yes

12

250
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 12V

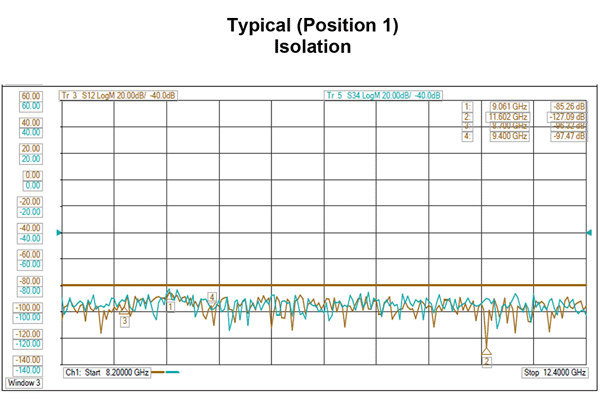

WR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 28V   PEWGS6063

8.2 to 12.4

WR90

0.05

85

5

123

Yes

28

140
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, O-Ring Groove, TTL, 28V


WR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 12V   PEWGS6064

8.2 to 12.4

WR90

0.05

85

5

123

No

12

250
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 12V


WR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 28V   PEWGS6065

8.2 to 12.4

WR90

0.05

85

5

123

No

28

150
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, 28V

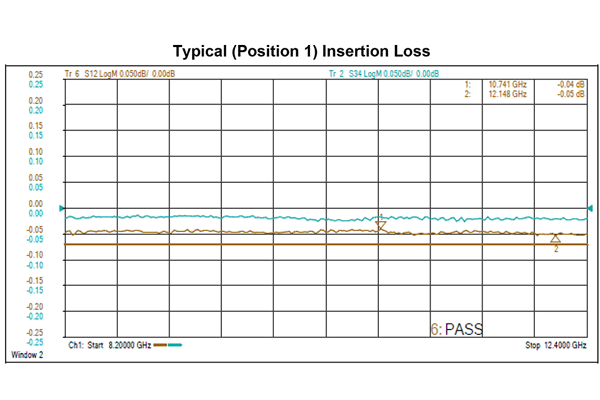

WR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, TTL, 12V   PEWGS6066

8.2 to 12.4

WR90

0.05

85

5

123

Yes

12

248
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, TTL, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, TTL, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, TTL, 12V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW, CPR-Flat, TTL, 12V

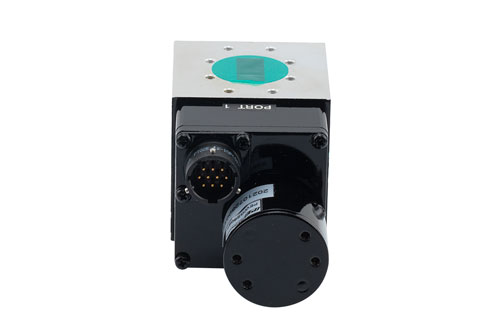

WR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW CPR-Flat, TTL, 28V   PEWGS6067

8.2 to 12.4

WR90

0.05

85

5

123

Yes

28

140
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW CPR-Flat, TTL, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW CPR-Flat, TTL, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW CPR-Flat, TTL, 28V
  • descrWR90 SPDT/DPDT Failsafe Waveguide Electromechancial Relay Switch, 8.2 GHz to 12.4 GHz, 5 kW CPR-Flat, TTL, 28V

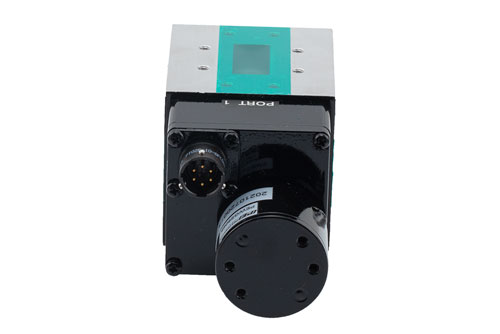

WR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 12V   PEWGS6068

7.05 to 10

WR112

0.04

88

7

202

No

12

250
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 12V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 12V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 12V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 12V


WR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 28V   PEWGS6069

7.05 to 10

WR112

0.04

88

7

202

No

28

142
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 28V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 28V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 28V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, 28V

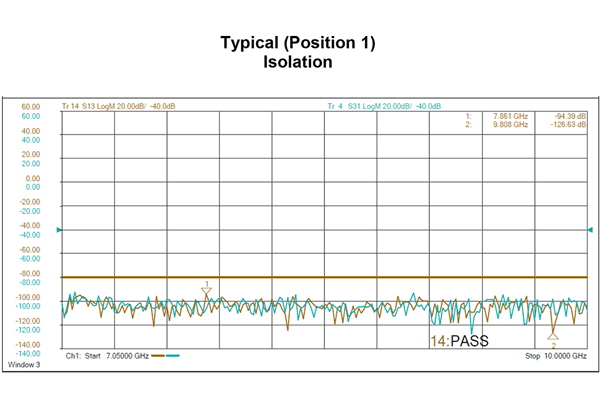

WR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW CPR-Flat, TTL, 12V   PEWGS6070

7.05 to 10

WR112

0.04

88

7

202

Yes

12

245
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW CPR-Flat, TTL, 12V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW CPR-Flat, TTL, 12V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW CPR-Flat, TTL, 12V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW CPR-Flat, TTL, 12V

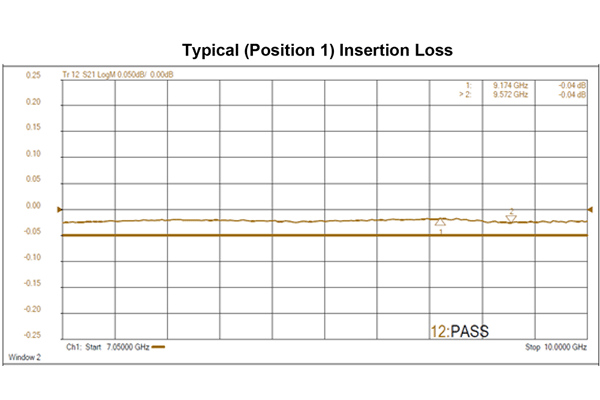

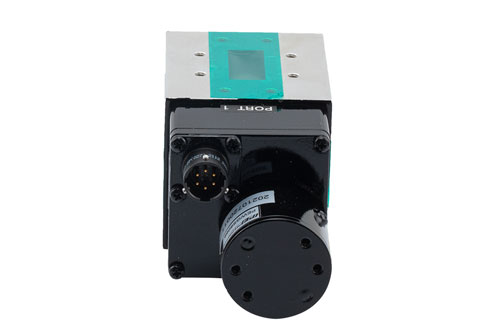

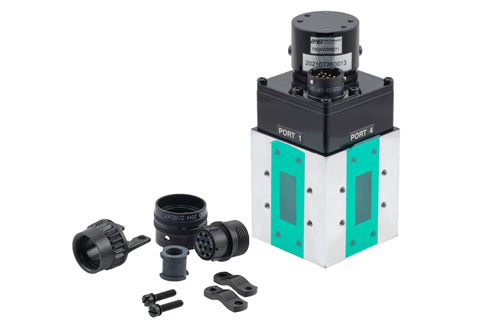

WR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, TTL, 28V   PEWGS6071

7.05 to 10

WR112

0.04

88

7

202

Yes

28

140
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, TTL, 28V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, TTL, 28V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, TTL, 28V
  • descrWR112 SPDT/DPDT Failsafe Waveguide Electromechanical Relay Switch, 7.05 GHz to 10 GHz,7 kW, CPR-Flat, TTL, 28V


Waveguide Failsafe Electromechanical Relay Switches from Pasternack

This new series of SPDT/DPDT Waveguide Failsafe Electromechanical Relay Switches from Pasternack support WR112, WR90, and WR28 Waveguide Sizes with O-Ring Grooves or CPR-Flat Flanges.  Our Waveguide Failsafe Electromechanical Relay Switches are designed for 50 Ohms and offer impressive typical performance including low Insertion Loss of 0.05 dB and high Isolation > 80, with RF input power handling up to 7 kW CW and 202 kW Peak.

Waveguide Failsafe Electromechanical Relay Switches are available in rugged Mil-Grade aluminum packages that are fully weatherized for 100% Humidity Exposure and -40°C to +85°C operating temperature.  Packages also support an environmentally sealed quick connect DC control connector with mate Included. Waveguide Failsafe Electromechanical Relay Switches are part of over 40,000 RF, microwave, and millimeter wave components available from Pasternack.  Our Waveguide Failsafe Electromechanical Relay Switches ship worldwide the same day that it is bought as with our other available RF parts.
