Part No.

Waveguide
Type

Frequency
Range
(GHz)

VSWR

Flange
Type

Connector
Type

Connector
Gender

ECCN

USA & Canada (866) 727-8376  International +1 (949) 261-1920

USA & Canada (866) 727-8376  International +1 (949) 261-1920

  • Waveguide to coax adapter series is available with 1.0mm, 1.85mm, and 2.4mm connections
  • Frequency range from 33 GHz to 110 GHz, Q-band to W-band
  • Coax to waveguide adapter VSWR as low as 1.33:1
  • Waveguide UG Style flanges



Waveguide to coaxial adapter series is in stock and ready for same-day shipping!

Part No.

Waveguide
Type

Frequency
Range
(GHz)

VSWR

Flange
Type

Connector
Type

Connector
Gender

ECCN

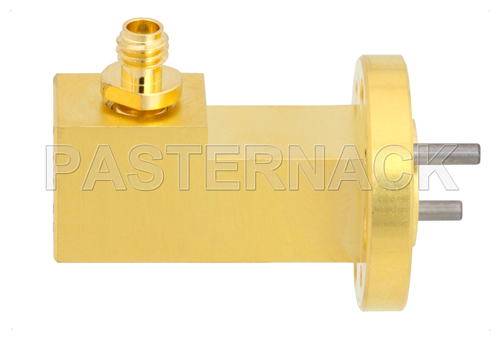

WR-10 UG-387/U-Mod Round Cover Flange to 1.0mm Female Waveguide to Coax Adapter Operating From 75 GHz to 110 GHz, W Band   PE-W10CA001

WR-10

75 - 110

1.90:1

UG-387/U-Mod
Round Cover

1.0mm

Female

EAR99

  • descrWR-10 UG-387/U-Mod Round Cover Flange to 1.0mm Female Waveguide to Coax Adapter Operating From 75 GHz to 110 GHz, W Band
  • descrWR-10 UG-387/U-Mod Round Cover Flange to 1.0mm Female Waveguide to Coax Adapter Operating From 75 GHz to 110 GHz, W Band

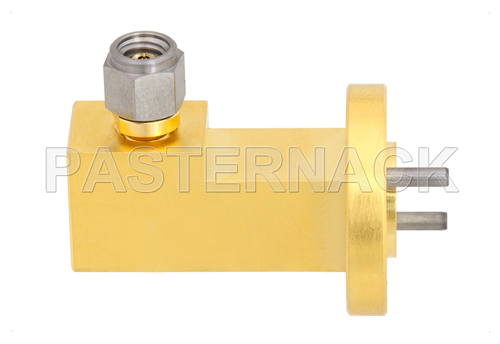

WR-10 UG-387/U-Mod Round Cover Flange to 1.0mm Male Waveguide to Coax Adapter Operating From 75 GHz to 110 GHz, W Band   PE-W10CA002

WR-10

75 - 110

1.90:1

UG-387/U-Mod
Round Cover

1.0mm

Male

EAR99

  • descrWR-10 UG-387/U-Mod Round Cover Flange to 1.0mm Male Waveguide to Coax Adapter Operating From 75 GHz to 110 GHz, W Band
  • descrWR-10 UG-387/U-Mod Round Cover Flange to 1.0mm Male Waveguide to Coax Adapter Operating From 75 GHz to 110 GHz, W Band

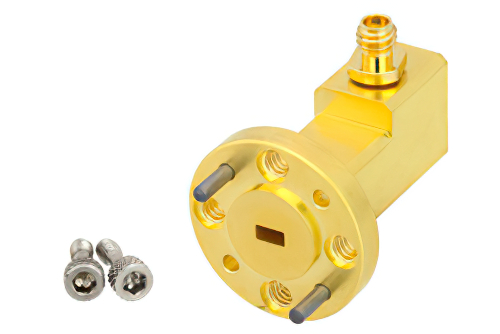

WR-12 UG-387/U Round Cover Flange to 1.0mm Female Waveguide to Coax Adapter Operating From 60 GHz to 90 GHz, E Band   PE-W12CA001

WR-12

60 - 90

1.67:1

UG-387/U
Round Cover

1.0mm

Female

EAR99

  • descrWR-12 UG-387/U Round Cover Flange to 1.0mm Female Waveguide to Coax Adapter Operating From 60 GHz to 90 GHz, E Band
  • descrWR-12 UG-387/U Round Cover Flange to 1.0mm Female Waveguide to Coax Adapter Operating From 60 GHz to 90 GHz, E Band

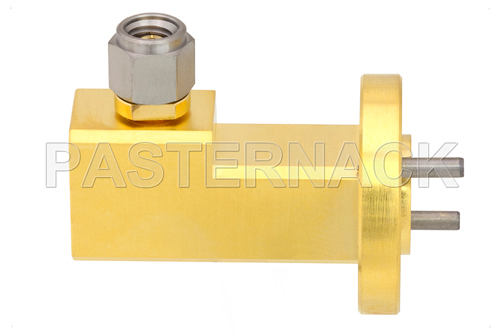

WR-12 UG-387/U Round Cover Flange to 1.0mm Male Waveguide to Coax Adapter Operating From 60 GHz to 90 GHz, E Band   PE-W12CA002

WR-12

60 - 90

1.67:1

UG-387/U
Round Cover

1.0mm

Male

EAR99

  • descrWR-12 UG-387/U Round Cover Flange to 1.0mm Male Waveguide to Coax Adapter Operating From 60 GHz to 90 GHz, E Band
  • descrWR-12 UG-387/U Round Cover Flange to 1.0mm Male Waveguide to Coax Adapter Operating From 60 GHz to 90 GHz, E Band

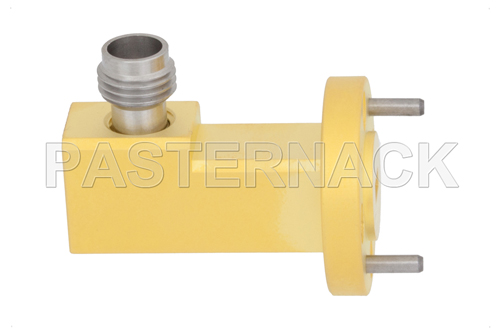

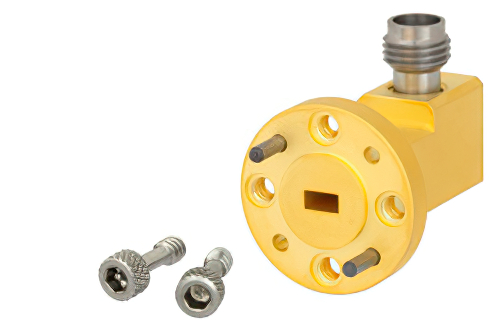

WR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz, V Band   PE-W15CA001

WR-15

50 - 65

1.44:1

UG-385/U
Round Cover

1.85mm

Female

EAR99

  • descrWR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz, V Band
  • descrWR-15 UG-385/U Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz, V Band

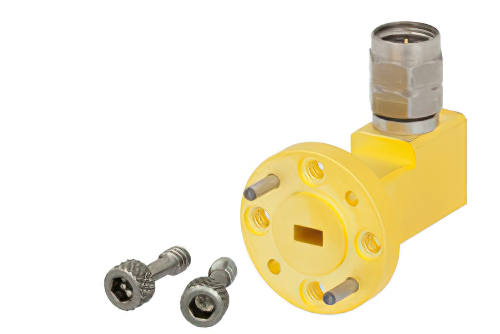

WR-15 UG-385/U Round Cover Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz, V Band   PE-W15CA002

WR-15

50 - 65

1.44:1

UG-385/U
Round Cover

1.85mm

Male

EAR99

  • descrWR-15 UG-385/U Round Cover Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz, V Band
  • descrWR-15 UG-385/U Round Cover Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 50 GHz to 65 GHz, V Band

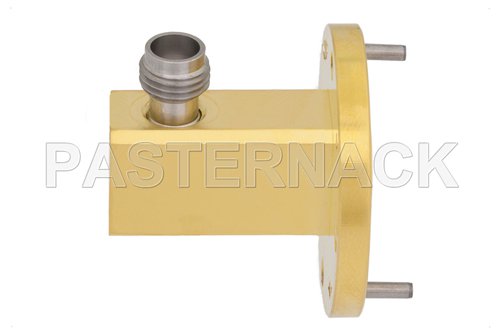

WR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band   PE-W19CA001

WR-19

40 - 60

1.38:1

UG-383/U-Mod
Round Cover

1.85mm

Female

EAR99

  • descrWR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band
  • descrWR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Female Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band

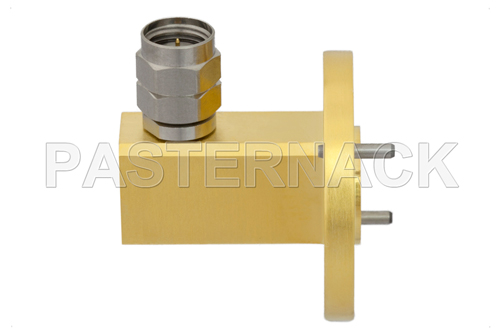

WR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band   PE-W19CA002

WR-19

40 - 60

1.38:1

UG-383/U-Mod
Round Cover

1.85mm

Male

EAR99

  • descrWR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band
  • descrWR-19 UG-383/U-Mod Round Cover Flange to 1.85mm Male Waveguide to Coax Adapter Operating From 40 GHz to 60 GHz, U Band

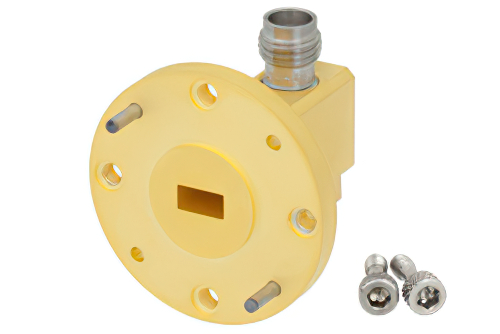

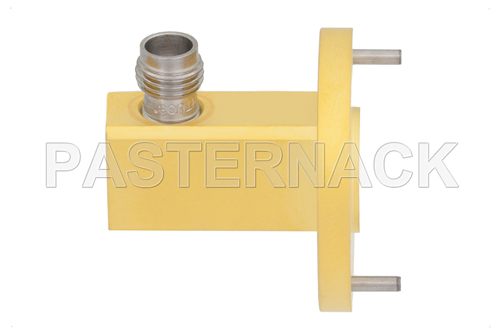

WR-22 UG-383/U Round Cover Flange to 2.4mm Female Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz, Q Band   PE-W22CA001

WR-22

33 - 50

1.33:1

UG-383/U
Round Cover

2.4mm

Female

EAR99

  • descrWR-22 UG-383/U Round Cover Flange to 2.4mm Female Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz, Q Band
  • descrWR-22 UG-383/U Round Cover Flange to 2.4mm Female Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz, Q Band

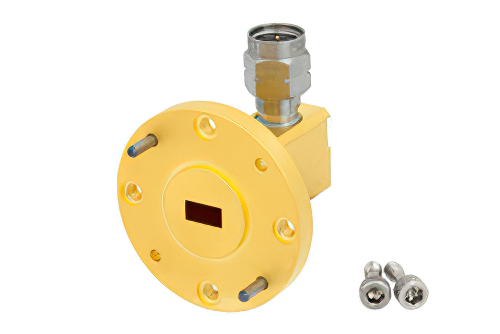

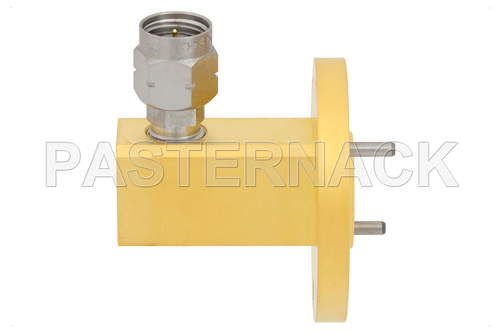

WR-22 UG-383/U Round Cover Flange to 2.4mm Male Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz, Q Band   PE-W22CA002

WR-22

33 - 50

1.33:1

UG-383/U
Round Cover

2.4mm

Male

EAR99

  • descrWR-22 UG-383/U Round Cover Flange to 2.4mm Male Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz, Q Band
  • descrWR-22 UG-383/U Round Cover Flange to 2.4mm Male Waveguide to Coax Adapter Operating From 33 GHz to 50 GHz, Q Band

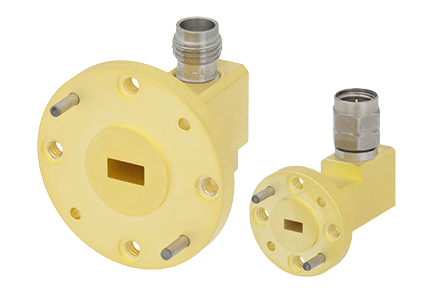

Waveguide-to-Coax Adapter Series for Q-band through W-band

Pasternack’s Q band through W band waveguide to coax adapter series is available with 1.0mm, 1.85mm and 2.4mm style connections. These waveguide to coax adapter components feature VSWR as low as 1.33:1. Coax to waveguide adapters support frequency ranges of 33 GHz to 100 GHz.

Typical applications for these Q-band through W-band waveguide to coax adapters include instrumentation, test benches, high efficiency RF/Microwave transmission, SATCOM, MILCOM, radar and telecom. As with the other over 40,000 Pasternack RF, microwave and millimeter wave components, this Q-band through W-band coaxial to waveguide adapter product line is in stock and will ship the same day.
