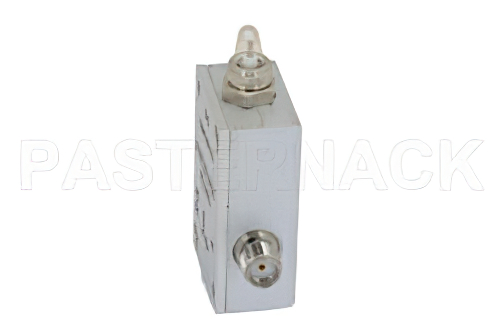

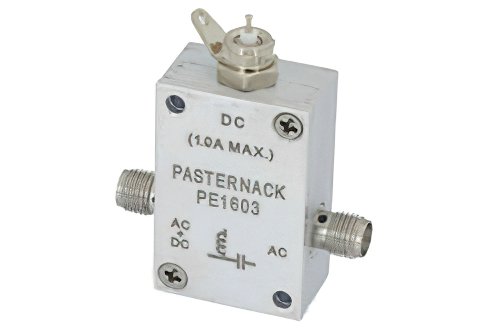

1 GHz to 5 GHz SMA Bias Tee Rated to 1000 mA And 50 Volts DC

PE1603 bias tee (also called bias T) has an SMA connector RF port that is female gender. This Pasternack female SMA bias tee design is rated for a minimum frequency of 1 GHz and a maximum frequency of 5 GHz. Our RF coaxial bias tee has a solder pin DC port connector with a female gender.

This SMA bias tee / T is rated for a max. DC voltage of 50 Volts and a max. current of 1,000 mA. The PE1603 bias T with SMA connector series for RF port is designed with a maximum VSWR of 1.5:1 and a RF to bias isolation typical of 25 dB. Pasternack's radio frequency bias tee is one of over 40,000 RF, microwave and millimeter wave components supplied by us. Our coaxial SMA bias T can be purchased and will be shipped worldwide the same-day as with other in-stock Pasternack RF parts.
