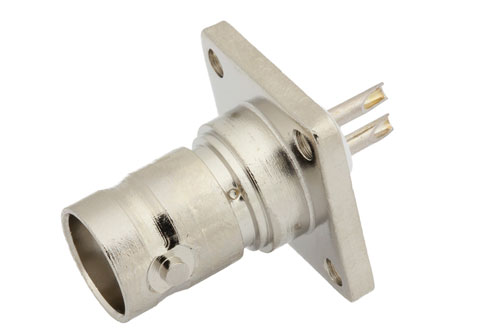

BNC Twinax Jack Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing

Name: BNC Twinax Jack Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing
Brand: Pasternack
SKU: PE4324
Availability: InStock

Product ID: PE4324

Pricing

Quantity	Price
1-24	$78.99
25-49	$75.04
50-99	$71.09
100-249	$67.93
250+	Call Us

* All Prices are in US Dollars and do not include duties

Buy

How many?

Available Quantity: 42

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

3D CAD
Model
(.step)

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Polarity	Standard

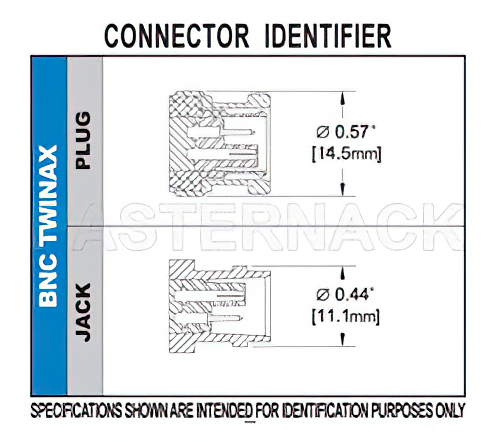

Connector Series	BNC Twinax
Connector Gender	Jack
Impedance	78 Ohm
Body Style	Straight
Attachment Method	Solder
Mount Method	4 Hole Flange
Interface Type 1	Solder Cup

Description

BNC Twinax Jack Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .500 inch Threaded Hole Spacing

PE4324 BNC Twinax jack 4 hole flange terminal connector has an interface type of solder cup and a 78 Ohm impedance. Pasternack BNC Twinax jack 4 hole flange connector uses shield/contact solder as an attachment method.

The Pasternack BNC Twinax jack 4 hole flange terminal connector has a PTFE dielectric type. The Pasternack BNC Twinax terminal connector has a brass body with nickel plating. This BNC Twinax jack 4 hole flange terminal RF connector is RoHS and REACH compliant.

This Pasternack jack BNC Twinax 4 hole flange connector will ship the same day as purchased. Our 4 hole flange BNC Twinax jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom BNC Twinax connector cable assemblies that will ship the same day as well.
