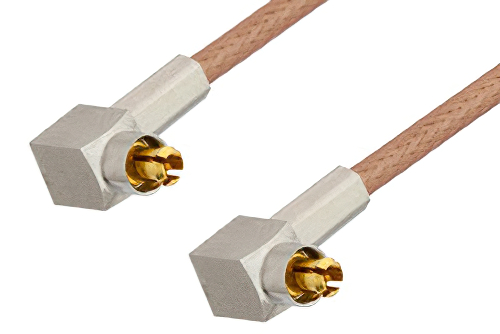

MC-Card Plug Right Angle to MC-Card Plug Right Angle Cable Using RG178 Coax, RoHS

Product ID: PE36128LF

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	MC-Card
Connector Gender 1	Plug
Connector Polarity 1	Standard
Connector Angle 1	Right Angle
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	MC-Card
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	RG178B/U
RF Cable Type	RG178
RF Cable Impedance	50

Description

MC-Card Plug Right Angle to MC-Card Plug Right Angle Cable Using RG178 Coax, RoHS

PE36128LF is a MC-Card plug right angle to MC-Card plug right angle cable using RG178 coax. This Pasternack MC-Card plug right angle to MC-Card plug right angle cable assembly uses a 50 Ohm MC-Card for connector 1 and a 50 Ohm MC-Card for connector 2. MC-Card right angle to MC-Card right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug MC-Card right angle to plug MC-Card right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE36128LF MC-Card plug right angle to MC-Card plug right angle cable assembly is constructed with RG178 coax.
