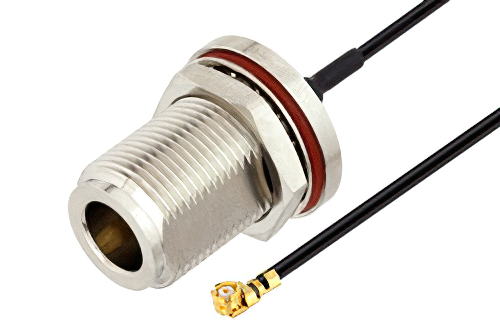

N Female Bulkhead to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS

Product ID: PE3CA1010

Length

Standard Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	N
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	Bulkhead
Connector Impedance 1	50
Connector Series 2	UMCX 2.5
Connector Gender 2	Plug
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-137mm
RF Cable Type	1.37mm
RF Cable Impedance	50

Description

N Female Bulkhead to UMCX 2.5 Plug Cable Using 1.37mm Coax, RoHS

PE3CA1010 is a type N female bulkhead to UMCX 2.5 plug cable using 1.37mm coax. This Pasternack type N female bulkhead to UMCX 2.5 plug cable assembly uses a 50 Ohm N type for connector 1 and a 50 Ohm UMCX 2.5 for connector 2.

Our female type N bulkhead to plug UMCX 2.5 cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3CA1010 type N female bulkhead to UMCX 2.5 plug cable assembly is constructed with 1.37mm coax and the maximum VSWR is 1.35:1.
