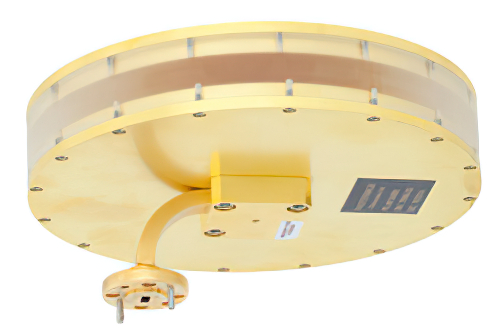

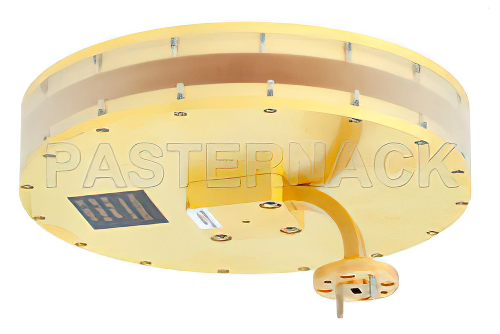

WR-15 Waveguide Horn Antenna Operating From 58 GHz to 63 GHz With a Nominal 0 dBi Gain With UG-387/U Round Cover Flange
Product ID:
PE-W15A001
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-15 |
| Flange Size | UG-387/U |
| Direction Type | Omni Directional |
| Polarization | Vertical |
| Frequency, Min | 58 GHz |
| Frequency, Max | 63 GHz |
| Beam Width, 3dB V | 360 |
| Beam Width, 3dB H | 35 |
Description
WR-15 Waveguide Horn Antenna Operating From 58 GHz to 63 GHz With a Nominal 0 dBi Gain With UG-387/U Flange
PE-W15A001 WR-15 waveguide horn antenna is also known as a WR-15 horn antenna. This WR-15 waveguide horn antenna has a dB nominal gain and a ug-387/u flange. Our dB WR-15 horn antenna has a minimum frequency of 58 GHz and a maximum frequency of 63 GHz.
WR-15 horn antenna PE-W15A001 has a vertical beam width of 360 and horizontal of 35 degrees at 3 dB. This WR-15 waveguide horn antenna with dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-15 horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
