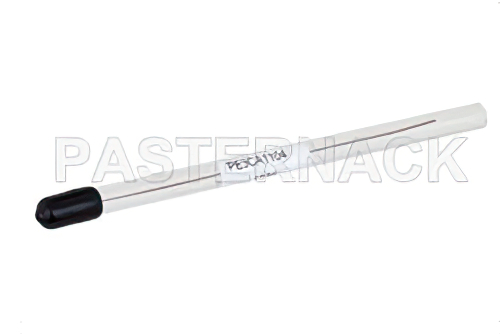

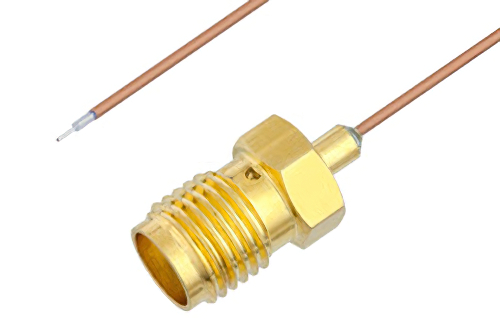

Pigtail Test Probe Cable SMA Female to Trimmed Lead Using PE-020SR Coax, RoHS

Product ID: PE3CA1104

Length

Standard Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	SMA
Connector Gender 1	Female
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	Pre-Trimmed Lead
Connector Gender 2	Sexless
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-020SR
RF Cable Type	PE-020SR
RF Cable Impedance	50

Description

Pigtail Test Probe Cable SMA Female to Pre-Trimmed Lead Using PE-020SR Coax, RoHS

PE3CA1104 is a SMA female to Pre-Trimmed Lead sexless cable using PE-020SR coax. This Pasternack SMA female to Pre-Trimmed Lead sexless cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm Pre-Trimmed Lead for connector 2.

Our female SMA to sexless Pre-Trimmed Lead cable assembly uses a semi-rigid cable type that is 50 Ohm. Pasternack PE3CA1104 SMA female to Pre-Trimmed Lead sexless cable assembly is constructed with PE-020SR coax and the maximum VSWR is 1.35:1.
