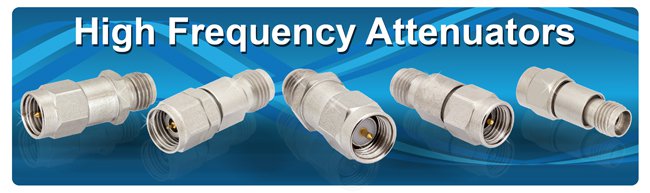

High Frequency Attenuators SMA, 2.92mm and 2.4mm High Frequency Attenuators |
|
SMA High Frequency Attenuator Series |
| |
| Fixed Attenuator SMA Female To SMA Male Stainless Steel Body
Rated To 2 Watts Up To 26.5 GHz |
| Model No. | Attenuation | | | Model No. | Attenuation | | | Model No. | Attenuation | | |
| PE7087-0 | 0 dB |  | | PE7087-5 | 5 dB | | | PE7087-10 | 10 dB | | |
| PE7087-1 | 1 dB | | | PE7087-6 | 6 dB | | | PE7087-12 | 12 dB | | |
| PE7087-2 | 2 dB | | | PE7087-7 | 7 dB | | | PE7087-15 | 15 dB | | |
| PE7087-3 | 3 dB | | | PE7087-8 | 8 dB | | | PE7087-20 | 20 dB | | |
| PE7087-4 | 4 dB | | | PE7087-9 | 9 dB | | | PE7087-30 | 30 dB | | |
|
| 2.92mm High Frequency Attenuator Series |
| |
| Fixed Attenuator 2.92mm Female To 2.92mm Male Stainless Steel Body
Rated To 1 Watt Up To 40 GHz |
| Model No. | Attenuation | | | Model No. | Attenuation | | | Model No. | Attenuation | | |
| PE7088-0 | 0 dB | | | PE7088-5 | 5 dB | | | PE7088-10 | 10 dB | | |
| PE7088-1 | 1 dB | | | PE7088-6 | 6 dB | | | PE7088-12 | 12 dB | | |
| PE7088-2 | 2 dB | | | PE7088-7 | 7 dB | | | PE7088-15 | 15 dB | | |
| PE7088-3 | 3 dB | | | PE7088-8 | 8 dB | | | PE7088-20 | 20 dB | | |
| PE7088-4 | 4 dB | | | PE7088-9 | 9 dB | | | PE7088-30 | 30 dB | | |
|
| 2.92mm High Frequency Attenuator Series |
| |
| Fixed Attenuator 2.92mm Female To 2.92mm Male Stainless Steel Body
Rated To 2 Watt Up To 40 GHz |
| Model No. | Attenuation | | | Model No. | Attenuation | | | Model No. | Attenuation | | |
| PE7090-3 | 3 dB | | | PE7090-10 | 10 dB | | | PE7090-20 | 20 dB | | |
| PE7090-6 | 6 dB | | | PE7090-15 | 15 dB | | | PE7090-30 | 30 dB | | |
|
| 2.4mm High Frequency Attenuator Series |
| |
| Fixed Attenuator 2.4mm Female To 2.4mm Male Stainless Steel Body
Rated To 1 Watt Up To 50 GHz |
| Model No. | Attenuation | | | Model No. | Attenuation | | | Model No. | Attenuation | | |
| PE7089-3 | 3 dB | | | PE7089-10 | 10 dB | | | PE7089-30 | 30 dB | | |
| PE7089-6 | 6 dB | | | PE7089-20 | 20 dB | | | | | | |
| |
| Pasternack high frequency attenuator families have frequency ranges from DC to 50 GHz which perform up to the microwave K and Q bands. Power ratings for the SMA, 2.4mm and 2.92mm high frequency attenuator series are 1 Watt to 2 Watts and are constructed with stainless steel bodies and Beryllium Copper (BeCu) contacts. These broadband, high frequency attenuators are available with attenuation values from 0 to 30 dB at 1 dB steps in some models.
High frequency attenuator products from Pasternack can be used for many applications including RF test labs, research facilities, military electronics, telecommunications equipment, security devices and others. The expansion of Pasternack’s millimeter wave attenuator family provides our customers with immediately available high quality product solutions. |
