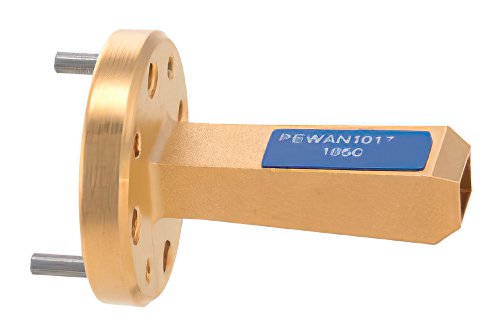

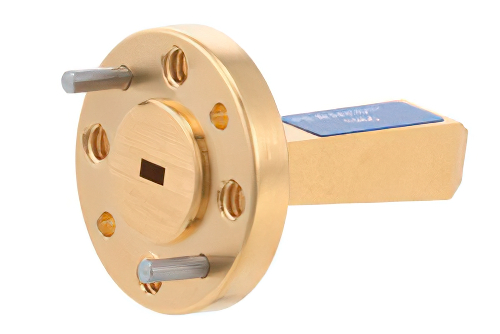

WR-10 Waveguide Standard Gain Horn Antenna Operating from 75 GHz to 110 GHz with a Nominal 10 dBi Gain with UG-387/U-Mod Round Cover Flange
Product ID:
PEWAN1017
Pricing
| Quantity | Price |
| 1-4 | $1,650.00 |
| 5-9 | $1,617.00 |
| 10-24 | $1,584.00 |
| 25+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 1
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-10 |
| Frequency, Min | 75 GHz |
| Frequency, Max | 110 GHz |
| Beam Width V | 52 |
| Beam Width H | 51 |
Description
WR-10 Waveguide Standard Gain Horn Antenna Operating from 75 GHz to 110 GHz with a Nominal 10 dBi Gain with UG-387/U-Mod Round Cover Flange
PEWAN1017 WR-10 standard gain horn antenna is also known as a waveguide horn. This WR-10 standard gain horn antenna has a 10 dBi nominal gain and a round cover flange. Our 10 dBi WR-10 horn antenna has a minimum frequency of 75 GHz and a maximum frequency of 110 GHz.
WR 10 standard gain horn waveguide antenna PEWAN1017 has a vertical beam width of 52 and horizontal of 51 degrees at 3 dB. This WR10 standard gain horn antenna with 10 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-10 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
