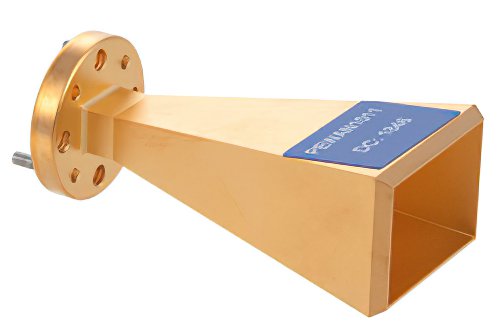

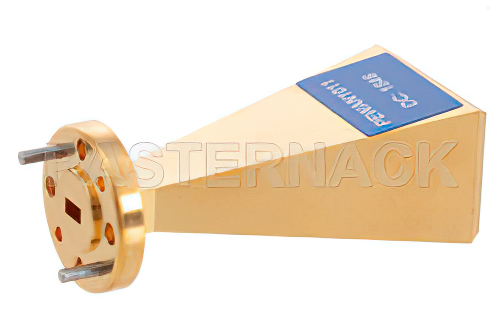

WR-15 Waveguide Standard Gain Horn Antenna Operating from 50 GHz to 75 GHz with a Nominal 20 dBi Gain with UG-385/U-Mod Round Cover Flange
Product ID:
PEWAN1011
Pricing
| Quantity | Price |
| 1-4 | $1,650.00 |
| 5-9 | $1,617.00 |
| 10-24 | $1,584.00 |
| 25+ | Call Us |
* All Prices are in US Dollars and do not include duties
Buy
Available Quantity: 5
Same-Day Shipping!
Order in the next hours!
* All Prices are in US Dollars and do not include duties
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-15 |
| Gain Min | 18.5 |
| Frequency, Min | 50 GHz |
| Frequency, Max | 75 GHz |
| Beam Width V | 15 |
| Beam Width H | 14 |
Description
WR-15 Waveguide Standard Gain Horn Antenna Operating from 50 GHz to 75 GHz with a Nominal 20 dBi Gain with UG-385/U-Mod Round Cover Flange
PEWAN1011 WR-15 standard gain horn antenna is also known as a waveguide horn. This WR-15 standard gain horn antenna has a 20 dBi nominal gain and a round cover flange. Our 20 dBi WR15 horn antenna has a minimum frequency of 50 GHz and a maximum frequency of 75 GHz.
WR-15 standard gain horn waveguide antenna PEWAN1011 has a vertical beam width of 15 and horizontal of 14 degrees at 3 dB. This WR-15 standard gain horn antenna with 20 dBi is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-15 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
