FME Plug to FME Plug Adapter

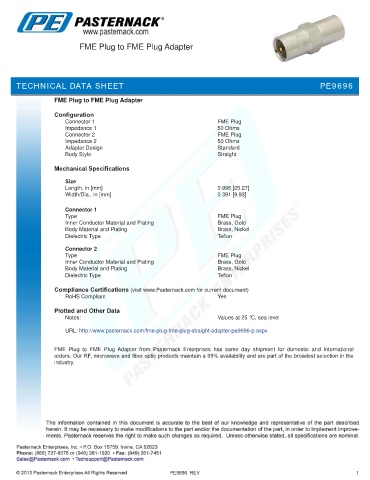

TECHNICAL DATA SHEET PE9696

FME Plug to FME Plug Adapter

Configuration
Connector 1 FME Plug
Impedance 1 50 Ohms
Connector 2 FME Plug
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 0.995 [25.27]
Width/Dia., in [mm] 0.391 [9.93]
.
Connector 1
Type FME Plug
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type FME Plug
Inner Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
URL: http://www.pasternack.com/fme-plug-fme-plug-straight-adapter-pe9696-p.aspx

FME Plug to FME Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9696 REV 1
