D-Sub Receptacle to D-Sub Receptacle Adapter

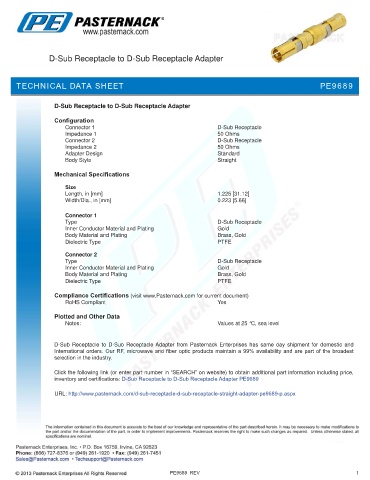

TECHNICAL DATA SHEET PE9689

D-Sub Receptacle to D-Sub Receptacle Adapter

Configuration
Connector 1 D-Sub Receptacle
Impedance 1 50 Ohms
Connector 2 D-Sub Receptacle
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.225 [31.12]
Width/Dia., in [mm] 0.223 [5.66]
.
Connector 1
Type D-Sub Receptacle
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Connector 2
Type D-Sub Receptacle
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Receptacle to D-Sub Receptacle Adapter from Pasternack Enterprises has same day shipment for domestic and
International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest
selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Receptacle to D-Sub Receptacle Adapter PE9689

URL: http://www.pasternack.com/d-sub-receptacle-d-sub-receptacle-straight-adapter-pe9689-p.aspx

PE9689 REV 1
