D-Sub Plug to D-Sub Plug Adapter

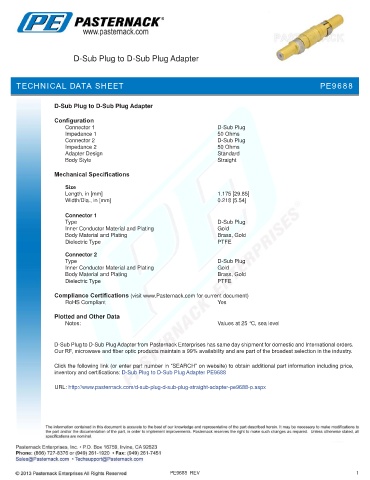

TECHNICAL DATA SHEET PE9688

D-Sub Plug to D-Sub Plug Adapter

Configuration
Connector 1 D-Sub Plug
Impedance 1 50 Ohms
Connector 2 D-Sub Plug
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.175 [29.85]
Width/Dia., in [mm] 0.218 [5.54]
.
Connector 1
Type D-Sub Plug
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Connector 2
Type D-Sub Plug
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Plug to D-Sub Plug Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Plug to D-Sub Plug Adapter PE9688

URL: http://www.pasternack.com/d-sub-plug-d-sub-plug-straight-adapter-pe9688-p.aspx

PE9688 REV 1
