D-Sub Plug to D-Sub Receptacle Adapter

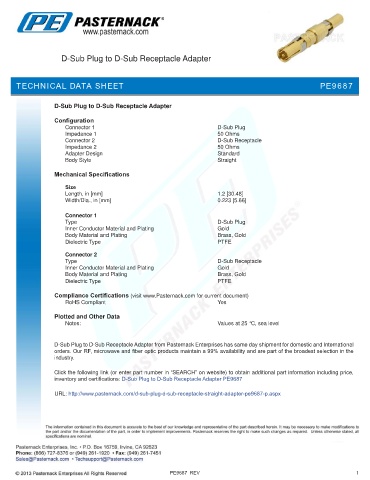

TECHNICAL DATA SHEET PE9687

D-Sub Plug to D-Sub Receptacle Adapter

Configuration
Connector 1 D-Sub Plug
Impedance 1 50 Ohms
Connector 2 D-Sub Receptacle
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.2 [30.48]
Width/Dia., in [mm] 0.223 [5.66]
.
Connector 1
Type D-Sub Plug
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Connector 2
Type D-Sub Receptacle
Inner Conductor Material and Plating Gold
Body Material and Plating Brass, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes
Plotted and Other Data
Notes: Values at 25 °C, sea level

D-Sub Plug to D-Sub Receptacle Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: D-Sub Plug to D-Sub Receptacle Adapter PE9687

URL: http://www.pasternack.com/d-sub-plug-d-sub-receptacle-straight-adapter-pe9687-p.aspx

PE9687 REV 1
