FME Plug to BNC Male Right Angle Adapter

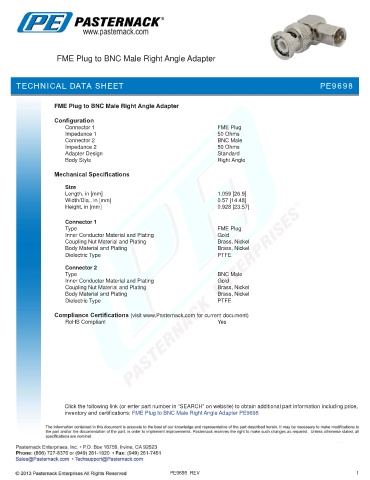

TECHNICAL DATA SHEET PE9698

FME Plug to BNC Male Right Angle Adapter

Configuration
Connector 1 FME Plug
Impedance 1 50 Ohms
Connector 2 BNC Male
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Right Angle

Mechanical Specifications

Size
Length, in [mm] 1.059 [26.9]
Width/Dia., in [mm] 0.57 [14.48]
Height, in [mm] 0.928 [23.57]
.
Connector 1
Type FME Plug
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE
Connector 2
Type BNC Male
Inner Conductor Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FME Plug to BNC Male Right Angle Adapter PE9698
