FME Jack to BNC Male Adapter

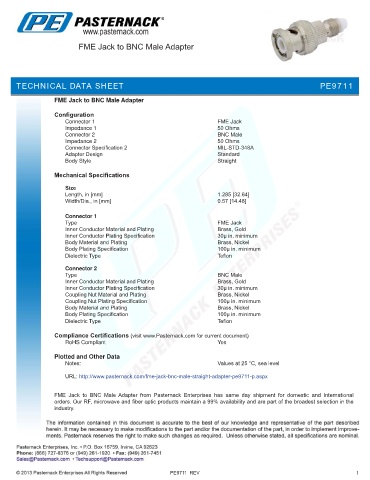

TECHNICAL DATA SHEET PE9711

FME Jack to BNC Male Adapter

Configuration
Connector 1 FME Jack
Impedance 1 50 Ohms
Connector 2 BNC Male
Impedance 2 50 Ohms
Connector Specification 2 MIL-STD-348A
Adapter Design Standard
Body Style Straight

Mechanical Specifications

Size
Length, in [mm] 1.285 [32.64]
Width/Dia., in [mm] 0.57 [14.48]
.
Connector 1
Type FME Jack
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon
Connector 2
Type BNC Male
Inner Conductor Material and Plating Brass, Gold
Inner Conductor Plating Specification 30µ in. minimum
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 100µ in. minimum
Body Material and Plating Brass, Nickel
Body Plating Specification 100µ in. minimum
Dielectric Type Teflon
Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

URL: http://www.pasternack.com/fme-jack-bnc-male-straight-adapter-pe9711-p.aspx

FME Jack to BNC Male Adapter from Pasternack Enterprises has same day shipment for domestic and International
orders. Our RF, microwave and fiber optic products maintain a 99% availability and are part of the broadest selection in the
industry.

PE9711 REV 1
