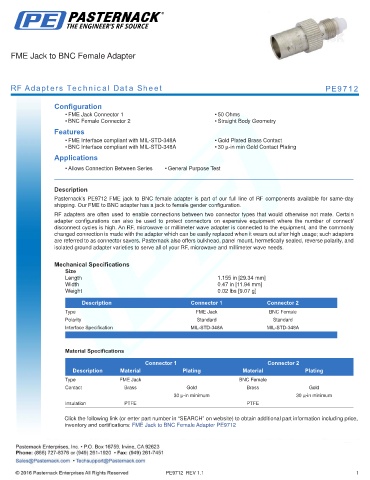

FME Jack to BNC Female Adapter

RF Adapters Technical Data Sheet PE9712

Configuration
• FME Jack Connector 1 • 50 Ohms
• BNC Female Connector 2 • Straight Body Geometry
Features
• FME Interface compliant with MIL-STD-348A • Gold Plated Brass Contact
• BNC Interface compliant with MIL-STD-348A • 30 µ-in min Gold Contact Plating
Applications
• Allows Connection Between Series • General Purpose Test
.
Description
Pasternack’s PE9712 FME jack to BNC female adapter is part of our full line of RF components available for same-day
shipping. Our FME to BNC adapter has a jack to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.155 in [29.34 mm]
Width 0.47 in [11.94 mm]
Weight 0.02 lbs [9.07 g]
.
Description Connector 1 Connector 2
Type FME Jack BNC Female
Polarity Standard Standard
Interface Specification MIL-STD-348A MIL-STD-348A
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type FME Jack BNC Female
Contact Brass Gold Brass Gold
30 µ-in minimum 30 µ-in minimum
Insulation PTFE PTFE

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: FME Jack to BNC Female Adapter PE9712

PE9712 REV 1.1 1
