GR874 Sexless to GR874 Sexless Right Angle Adapter

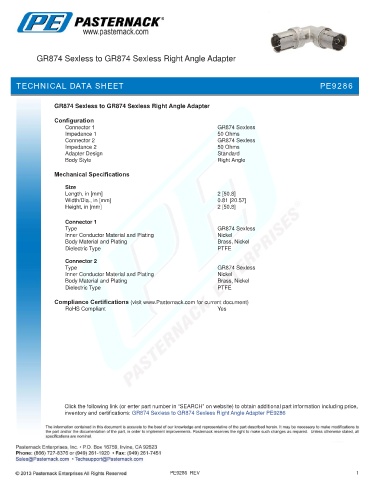

TECHNICAL DATA SHEET PE9286

GR874 Sexless to GR874 Sexless Right Angle Adapter

Configuration
Connector 1 GR874 Sexless
Impedance 1 50 Ohms
Connector 2 GR874 Sexless
Impedance 2 50 Ohms
Adapter Design Standard
Body Style Right Angle

Mechanical Specifications

Size
Length, in [mm] 2 [50.8]
Width/Dia., in [mm] 0.81 [20.57]
Height, in [mm] 2 [50.8]
.
Connector 1
Type GR874 Sexless
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Connector 2
Type GR874 Sexless
Inner Conductor Material and Plating Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: GR874 Sexless to GR874 Sexless Right Angle Adapter PE9286

PE9286 REV 1
