GR874 Tee Adapter

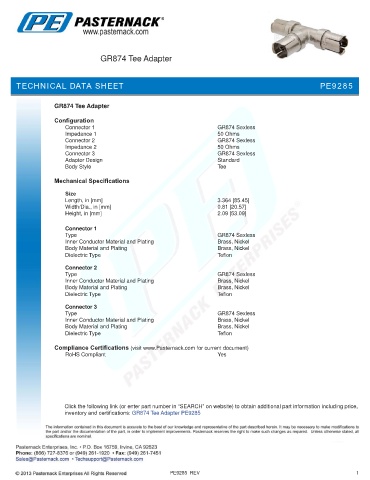

TECHNICAL DATA SHEET PE9285

GR874 Tee Adapter

Configuration
Connector 1 GR874 Sexless
Impedance 1 50 Ohms
Connector 2 GR874 Sexless
Impedance 2 50 Ohms
Connector 3 GR874 Sexless
Adapter Design Standard
Body Style Tee
Mechanical Specifications

Size
Length, in [mm] 3.364 [85.45]
Width/Dia., in [mm] 0.81 [20.57]
Height, in [mm] 2.09 [53.09]
.
Connector 1
Type GR874 Sexless
Inner Conductor Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 2
Type GR874 Sexless
Inner Conductor Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon
Connector 3
Type GR874 Sexless
Inner Conductor Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: GR874 Tee Adapter PE9285

PE9285 REV 1
