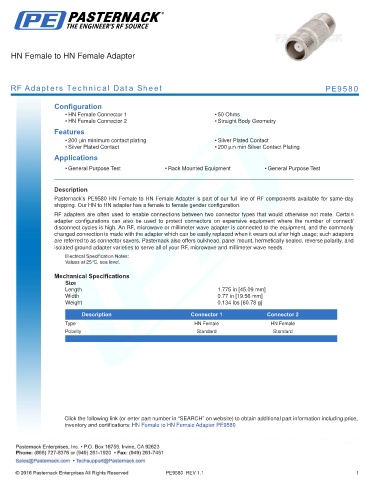

HN Female to HN Female Adapter

RF Adapters Technical Data Sheet PE9580

Configuration
• HN Female Connector 1 • 50 Ohms
• HN Female Connector 2 • Straight Body Geometry
Features
• 200 µin minimum contact plating • Silver Plated Contact
• Silver Plated Contact • 200 µin min Silver Contact Plating
Applications
• General Purpose Test • Rack Mounted Equipment • General Purpose Test
.
Description
Pasternack’s PE9580 HN Female to HN Female Adapter is part of our full line of RF components available for same-day
shipping. Our HN to HN adapter has a female to female gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.775 in [45.09 mm]
Width 0.77 in [19.56 mm]
Weight 0.134 lbs [60.78 g]
.
Description Connector 1 Connector 2
Type HN Female HN Female
Polarity Standard Standard
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Female to HN Female Adapter PE9580

PE9580 REV 1.1 1
