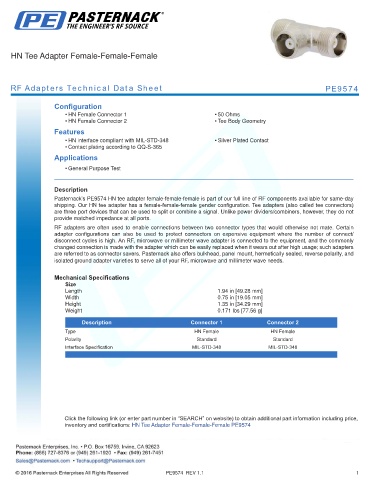

HN Tee Adapter Female-Female-Female

RF Adapters Technical Data Sheet PE9574

Configuration
• HN Female Connector 1 • 50 Ohms
• HN Female Connector 2 • Tee Body Geometry
Features
• HN interface compliant with MIL-STD-348 • Silver Plated Contact
• Contact plating according to QQ-S-365
Applications
• General Purpose Test
.
Description
Pasternack’s PE9574 HN tee adapter female-female-female is part of our full line of RF components available for same-day
shipping. Our HN tee adapter has a female-female-female gender configuration. Tee adapters (also called tee connectors)
are three port devices that can be used to split or combine a signal. Unlike power dividers/combiners, however, they do not
provide matched impedance at all ports.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 1.94 in [49.28 mm]
Width 0.75 in [19.05 mm]
Height 1.35 in [34.29 mm]
Weight 0.171 lbs [77.56 g]
.
Description Connector 1 Connector 2
Type HN Female HN Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: HN Tee Adapter Female-Female-Female PE9574

PE9574 REV 1.1 1
