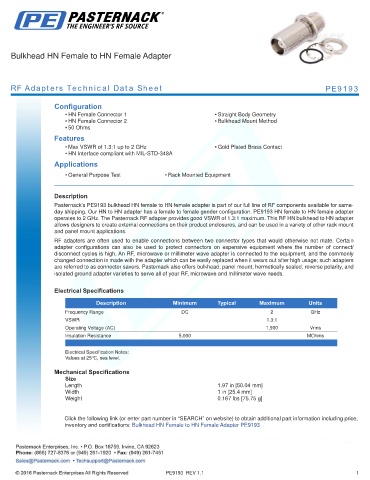

Bulkhead HN Female to HN Female Adapter

RF Adapters Technical Data Sheet PE9193

Configuration
• HN Female Connector 1 • Straight Body Geometry
• HN Female Connector 2 • Bulkhead Mount Method
• 50 Ohms
Features
• Max VSWR of 1.3:1 up to 2 GHz • Gold Plated Brass Contact
• HN Interface compliant with MIL-STD-348A
Applications
• General Purpose Test • Rack Mounted Equipment

.
Description
Pasternack’s PE9193 bulkhead HN female to HN female adapter is part of our full line of RF components available for same-
day shipping. Our HN to HN adapter has a female to female gender configuration. PE9193 HN female to HN female adapter
operates to 2 GHz. The Pasternack RF adapter provides good VSWR of 1.3:1 maximum. This RF HN bulkhead to HN adapter
allows designers to create external connections on their product enclosures, and can be used in a variety of other rack mount
and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,900 Vrms
Insulation Resistance 5,000 MOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 1.97 in [50.04 mm]
Width 1 in [25.4 mm]
Weight 0.167 lbs [75.75 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead HN Female to HN Female Adapter PE9193

PE9193 REV 1.1 1
