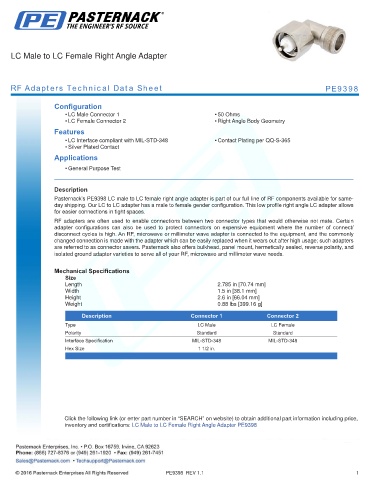

LC Male to LC Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9398

Configuration
• LC Male Connector 1 • 50 Ohms
• LC Female Connector 2 • Right Angle Body Geometry
Features
• LC Interface compliant with MIL-STD-348 • Contact Plating per QQ-S-365
• Silver Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9398 LC male to LC female right angle adapter is part of our full line of RF components available for same-
day shipping. Our LC to LC adapter has a male to female gender configuration. This low profile right angle LC adapter allows
for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 2.785 in [70.74 mm]
Width 1.5 in [38.1 mm]
Height 2.6 in [66.04 mm]
Weight 0.88 lbs [399.16 g]
.
Description Connector 1 Connector 2
Type LC Male LC Female
Polarity Standard Standard
Interface Specification MIL-STD-348 MIL-STD-348
Hex Size 1 1/2 in.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Male to LC Female Right Angle Adapter PE9398
