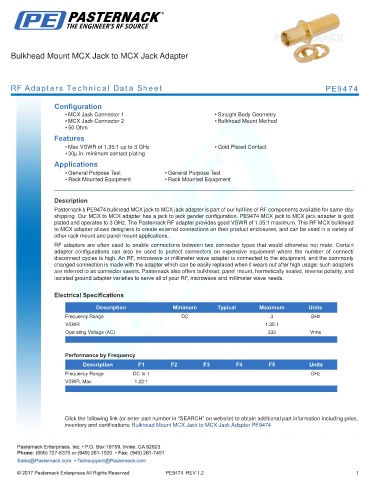

Bulkhead Mount MCX Jack to MCX Jack Adapter

RF Adapters Technical Data Sheet PE9474

Configuration
• MCX Jack Connector 1 • Straight Body Geometry
• MCX Jack Connector 2 • Bulkhead Mount Method
• 50 Ohm
Features
• Max VSWR of 1.35:1 up to 3 GHz • Gold Plated Contact
• 30µ in. minimum contact plating
Applications
• General Purpose Test • General Purpose Test
• Rack Mounted Equipment • Rack Mounted Equipment
.
Description
Pasternack’s PE9474 bulkhead MCX jack to MCX jack adapter is part of our full line of RF components available for same-day
shipping. Our MCX to MCX adapter has a jack to jack gender configuration. PE9474 MCX jack to MCX jack adapter is gold
plated and operates to 3 GHz. The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. This RF MCX bulkhead
to MCX adapter allows designers to create external connections on their product enclosures, and can be used in a variety of
other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
Operating Voltage (AC) 335 Vrms
. .

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 GHz
VSWR, Max 1.22:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount MCX Jack to MCX Jack Adapter PE9474

PE9474 REV 1.2 1
