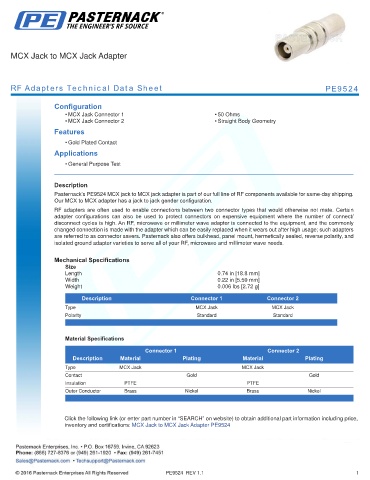

MCX Jack to MCX Jack Adapter

RF Adapters Technical Data Sheet PE9524

Configuration
• MCX Jack Connector 1 • 50 Ohms
• MCX Jack Connector 2 • Straight Body Geometry
Features

• Gold Plated Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9524 MCX jack to MCX jack adapter is part of our full line of RF components available for same-day shipping.
Our MCX to MCX adapter has a jack to jack gender configuration.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.74 in [18.8 mm]
Width 0.22 in [5.59 mm]
Weight 0.006 lbs [2.72 g]
.
Description Connector 1 Connector 2
Type MCX Jack MCX Jack
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MCX Jack MCX Jack
Contact Gold Gold
Insulation PTFE PTFE
Outer Conductor Brass Nickel Brass Nickel
. .

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack to MCX Jack Adapter PE9524

PE9524 REV 1.1 1
