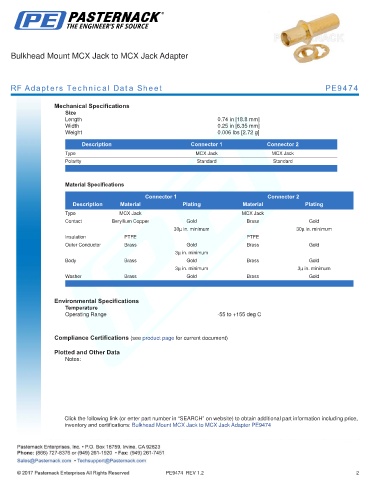

Bulkhead Mount MCX Jack to MCX Jack Adapter

RF Adapters Technical Data Sheet PE9474

Mechanical Specifications
Size
Length 0.74 in [18.8 mm]
Width 0.25 in [6.35 mm]
Weight 0.006 lbs [2.72 g]
.
Description Connector 1 Connector 2
Type MCX Jack MCX Jack
Polarity Standard Standard
.

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MCX Jack MCX Jack
Contact Beryllium Copper Gold Brass Gold
30µ in. minimum 30µ in. minimum
Insulation PTFE PTFE
Outer Conductor Brass Gold Brass Gold
3µ in. minimum
Body Brass Gold Brass Gold
3µ in. minimum 3µ in. minimum
Washer Brass Gold Brass Gold
. .

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Bulkhead Mount MCX Jack to MCX Jack Adapter PE9474

PE9474 REV 1.2 2
