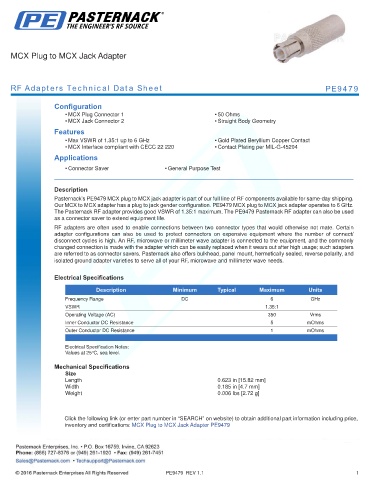

MCX Plug to MCX Jack Adapter

RF Adapters Technical Data Sheet PE9479

Configuration
• MCX Plug Connector 1 • 50 Ohms
• MCX Jack Connector 2 • Straight Body Geometry
Features
• Max VSWR of 1.35:1 up to 6 GHz • Gold Plated Beryllium Copper Contact
• MCX Interface compliant with CECC 22 220 • Contact Plating per MIL-G-45204
Applications
• Connector Saver • General Purpose Test
.
Description
Pasternack’s PE9479 MCX plug to MCX jack adapter is part of our full line of RF components available for same-day shipping.
Our MCX to MCX adapter has a plug to jack gender configuration. PE9479 MCX plug to MCX jack adapter operates to 6 GHz.
The Pasternack RF adapter provides good VSWR of 1.35:1 maximum. The PE9479 Pasternack RF adapter can also be used
as a connector saver to extend equipment life.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.35:1
Operating Voltage (AC) 350 Vrms
Inner Conductor DC Resistance 5 mOhms
Outer Conductor DC Resistance 1 mOhms
. .
Electrical Specification Notes:
Values at 25°C, sea level.

Mechanical Specifications
Size
Length 0.623 in [15.82 mm]
Width 0.185 in [4.7 mm]
Weight 0.006 lbs [2.72 g]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug to MCX Jack Adapter PE9479
