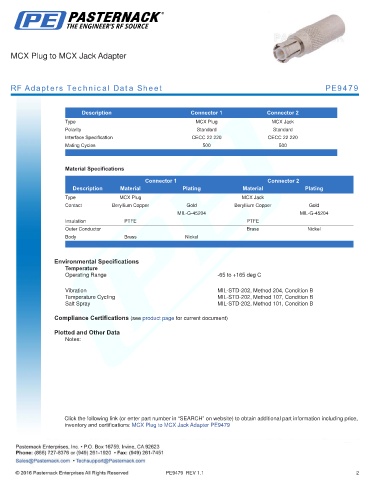

MCX Plug to MCX Jack Adapter

RF Adapters Technical Data Sheet PE9479

.
Description Connector 1 Connector 2
Type MCX Plug MCX Jack
Polarity Standard Standard
Interface Specification CECC 22 220 CECC 22 220
Mating Cycles 500 500
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type MCX Plug MCX Jack
Contact Beryllium Copper Gold Beryllium Copper Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
Body Brass Nickel
. .

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
.
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycling MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug to MCX Jack Adapter PE9479

PE9479 REV 1.1 2
