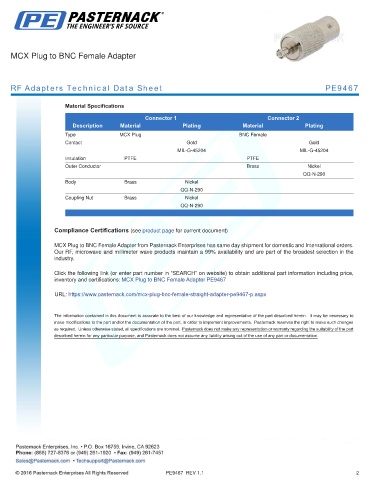

MCX Plug to BNC Female Adapter

RF Adapters Technical Data Sheet PE9467

Material Specifications

Connector 1 Connector 2
Description Material Plating Material Plating
Type MCX Plug BNC Female
Contact Gold Gold
MIL-G-45204 MIL-G-45204
Insulation PTFE PTFE
Outer Conductor Brass Nickel
QQ-N-290
Body Brass Nickel
QQ-N-290
Coupling Nut Brass Nickel
QQ-N-290
. .

Compliance Certifications (see product page for current document)

MCX Plug to BNC Female Adapter from Pasternack Enterprises has same day shipment for domestic and International orders.
Our RF, microwave and millimeter wave products maintain a 99% availability and are part of the broadest selection in the
industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug to BNC Female Adapter PE9467

URL: https://www.pasternack.com/mcx-plug-bnc-female-straight-adapter-pe9467-p.aspx

PE9467 REV 1.1 2
