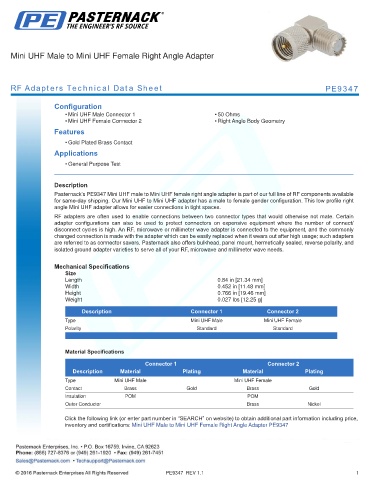

Mini UHF Male to Mini UHF Female Right Angle Adapter

RF Adapters Technical Data Sheet PE9347

Configuration
• Mini UHF Male Connector 1 • 50 Ohms
• Mini UHF Female Connector 2 • Right Angle Body Geometry
Features

• Gold Plated Brass Contact
Applications
• General Purpose Test
.
Description
Pasternack’s PE9347 Mini UHF male to Mini UHF female right angle adapter is part of our full line of RF components available
for same-day shipping. Our Mini UHF to Mini UHF adapter has a male to female gender configuration. This low profile right
angle Mini UHF adapter allows for easier connections in tight spaces.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Mechanical Specifications
Size
Length 0.84 in [21.34 mm]
Width 0.452 in [11.48 mm]
Height 0.766 in [19.46 mm]
Weight 0.027 lbs [12.25 g]
.
Description Connector 1 Connector 2
Type Mini UHF Male Mini UHF Female
Polarity Standard Standard
.

Material Specifications
Connector 1 Connector 2
Description Material Plating Material Plating
Type Mini UHF Male Mini UHF Female
Contact Brass Gold Brass Gold
Insulation POM POM
Outer Conductor Brass Nickel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini UHF Male to Mini UHF Female Right Angle Adapter PE9347

PE9347 REV 1.1 1
